1 HP VFX Aerating Fountain

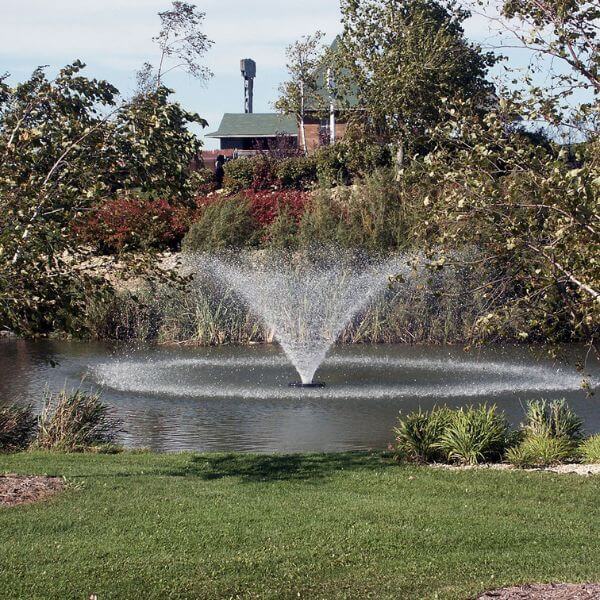

VFX Aerating Fountain produces a pleasing “V“ shape pattern while effectively aerating your pond. Aeration helps stimulate faster bio-degradation of organic waste and allows for larger, healthier fish populations.
VX-Series Solar Powered Water Fountains are the least expensive to purchase, maintain, repair, and operate. Our VX-Series Aerating Fountains come complete with everything you need: control panel with Ground Fault Interrupter and photo-eye for optional light kit, power cord, and mooring lines.
VX-Series are Industrial strength — designed with heavy-duty stainless steel components for continuous operation, extended motor life and corrosion prevention (even in salt water.) Energy efficient — low power consumption makes continuous operation affordable and Dependable — units are designed to operate continuously with minimal maintenance, even in shallow water. They are the least likely fountains to clog of any manufacturer because of deflector technology, prop guard, and standard bottom intake screen.
So what do you get when you purchase a Marine VFX Aerating Fountain?
- Easy Install & Low Maintenance
- Powerful & Durable
- Two Year Warranty
- ETL, UL & CSA Approved
- Available In Three Different Power Models: 120V, 240V or 60Hz
- Available In Four Different Sizes: 3/4 HP, 1 HP, 2 HP & 5 HP
- Cord Lengths: Wide Variety Of Cord Lengths Available For Your Application
Aeration & Your Pond
Increased circulation and oxygenation of thermal-stratified water helps to stimulate the natural bio-degradation of organic waste, such as grass clippings, leaves and run-off, and pollutants. Oxygen is circulated and absorbed into the water, thereby increasing aerobic decomposition of sunken organic matter. Aeration can help eliminate spring & fall turnover and helps to promote greater densities of fish.
Comes Complete With Everything You Need For Home Install
- Fountain unit with whisper-quiet operation
- Control panel with ground fault interrupter
- Photo-eye for optional light kit
- Power cord
- Mooring lines
Quality Componentry
Industrial strength. Designed with heavy-duty stainless steel components for continuous operation, extended motor life and corrosion prevention even in saltwater.
Product Dependability
HP VFX Aerating Fountains are designed to operate continuously with minimal maintenance, even in shallow water. They are not likely to clog because of deflector technology, prop guard, and standard bottom intake screen.
Aerates Ponds/Lakes Up To 3/4 Acre:
- Pattern Size: 8 Feet Tall x 26 Feet Wide Available
- Float With Bottom Screen
- 2 – 50 Foot Mooring Lines
- Control Box
- Available in 120V and 240V Styles
- 2 Year Warranty
Why Aerate your pond with Solar Powered Water Fountain?
- Increased circulation and oxygenation of thermal-stratified water helps to stimulate the natural biodegradation of organic waste (such as grass clippings, leaves and run-off) and pollutants.
- Oxygen is circulated and absorbed into the water, thereby increasing aerobic decomposition of sunken organic matter.
- Aeration can help eliminate spring and fall turnover.
- Aeration helps to promote greater densities of fish.
Power Control Conserves Energy
VX-Series 120V fountains come standard with a C-25 Ground Fault Circuit Interrupter (GFCI) in a rain-tight enclosure with 24-hour timer and photo sensor for optional light kit. VX-Series 240V fountains come standard with a C-85 Ground Fault Circuit Interrupter (GFCI) in a rain-tight enclosure, that offers an external plug-in or internal hardwired connection, a 24-hour timer, lightning arrestor, and photo sensor for optional light kit.
Important Product Notes
Make sure you know the distance from the power box to the distance you want the fountain to sit in the pond/lake. The fountain cord length chosen should be the same as the light cord length chosen.
Product Specifications/strong
Item Number |
120V: 4400VFX-50, 4400VFX-100, 4400VFX-150, 4400VFX-200 24OV: 4400HVFX-50, 4400HVFX-100, 4400HVFX-150, 4400HVFX-200, 4400VFX-250, 4400VFX-300, 4400VFX-400 |
Fountain |
1 HP VFX Aerating Fountain |
Cord Lengths Available |
50, 100, 150, 200 Feet |
Maximum Pond Size |
Up To 1/2 Acre |
120V or 240V Motor Options |
1 |
Horsepower |
1 HP |
Pattern Size |
8 Feet Tall x 26 Feet Wide |
AMPS |
11.3 (120V) and 5.7 (240V) |
Watts |
1,356 (120V) and 1,356 (240V) |
Minimum Water Depth |
19 Inches |
Warranty |
2 Year Limited |
Mooring Line |
2 – 50 Foot |
Control Box |
1 |
Fountain Heads |
1 |
Control Panel Connection |
120V - C-25 Plug in 240V – Hardwire C-85 |
Model No. |
Pattern Size |
Horsepower |
Voltage |
Operating amps |
Recommended Pond Sizes (SA) |
Min. Depth of Operation |
2400vfx |
5’ h x 15’ w |
1/2 |
120 |
5.6 |
Up to 1/3 acre |
15” |
3400vfx |
6’ h x 21’ w |
3/4 |
120 |
7.3 |
Up to 1/2 acre |
17.5” |
3400hvfx |
x 6’ h x 21’ w |
3/4 |
240 |
3.7 |
Up to 1/2 acre |
17.5” |
4400vfx |
8’ h x 26’ w |
1 |
120 |
11.3 |
Up to 3/4 acre |
19″ |
4400hvfx |
8’ h x 26’ w |
1 |
240 |
5.7 |
Up to 3/4 acre |
19” |
8400vfx |
8’ h x 32’ w |
2 |
240 |
13 |
Up to 1 1/4 acre |
24″ |
5.1V |
9’ h x 34’ w |
5 |
240 |
20 |
Up to 2 acres |
26″ |
