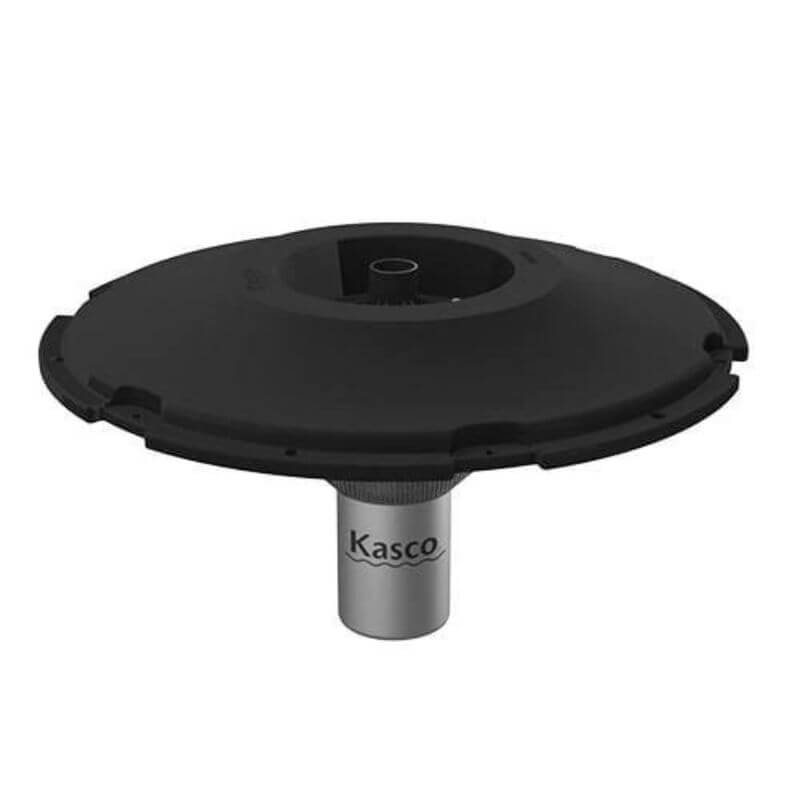

U7.3JF Aerating Fountain 7HP 240V 3PH Float No Control

It boasts an environmentally friendly design and a hard-face internal mechanical seal for leak protection. It also contains top and bottom ball bearings with a long life. It is lubricated with flood oil for excellent heat dissipation. It performs well in salt water and other corrosive situations, such as chlorine.

The external metal motor, float, and hardware components are all made of stainless steel and are shielded by a sacrificial zinc anode.

Redwood, Spruce, Birch, Linden, and Balsam are the five fountain patterns available for the 7.3JF Decorative Fountain. The fountain is an energy-efficient 3-Phase, utilizing only a 1750 rpm motor, and is built of heavy-duty stainless steel. The fountain itself helps add oxygen and enhances pond or lake aeration. The fountain comes with a secure C-3075 control box.

The J Series Fountains enhance the beauty of any pond or lake. There are numerous visually beautiful patterns to pick from, including Linden, Redwood, and Birch, to mention a few. The J Series is more than just a focal point in an aquatic setting; it also contributes to the health and clarity of the water. It accomplishes this by circulating the water and transferring oxygen. Another unique advantage is that the interrupted water from the spray patterns prevents mosquito breeding.

Product Features

• Available motors: ¾, 1, 2, 3, 5, and 7½HP.
• 60Hz, single, and three-phase packages.
• Packages are ETL approved to UL and CSA standards.
• 2-year warranty on ¾HP and 1HP motors.
• 3-year warranty on 2HP motors (optional 5 years extended warranty available)
• NEW 5 year warranty on 3, 5, and 7 ½HP motors.
• Additional Premium Nozzles available
• Optional Light Packages.

Package Includes

• Motor unit
• Float
• Bottom screen
• Interchangeable nozzles
• Control panel with GFI protection
• Mooring lines
• Power cord

CF-3075 Control Panel

Personnel protection GFI, a 5ma trip level, a motor starter with adjustable overload, lightning, and a surge protector are all included in this three-phase control panel. Two 24-hour timers and a hand-off timer switch are also included.

Model Motor Voltage Phase Min. Patterns Included Depth (in.)

7.3JF 7-1/2HP 208-240 3 28 5
