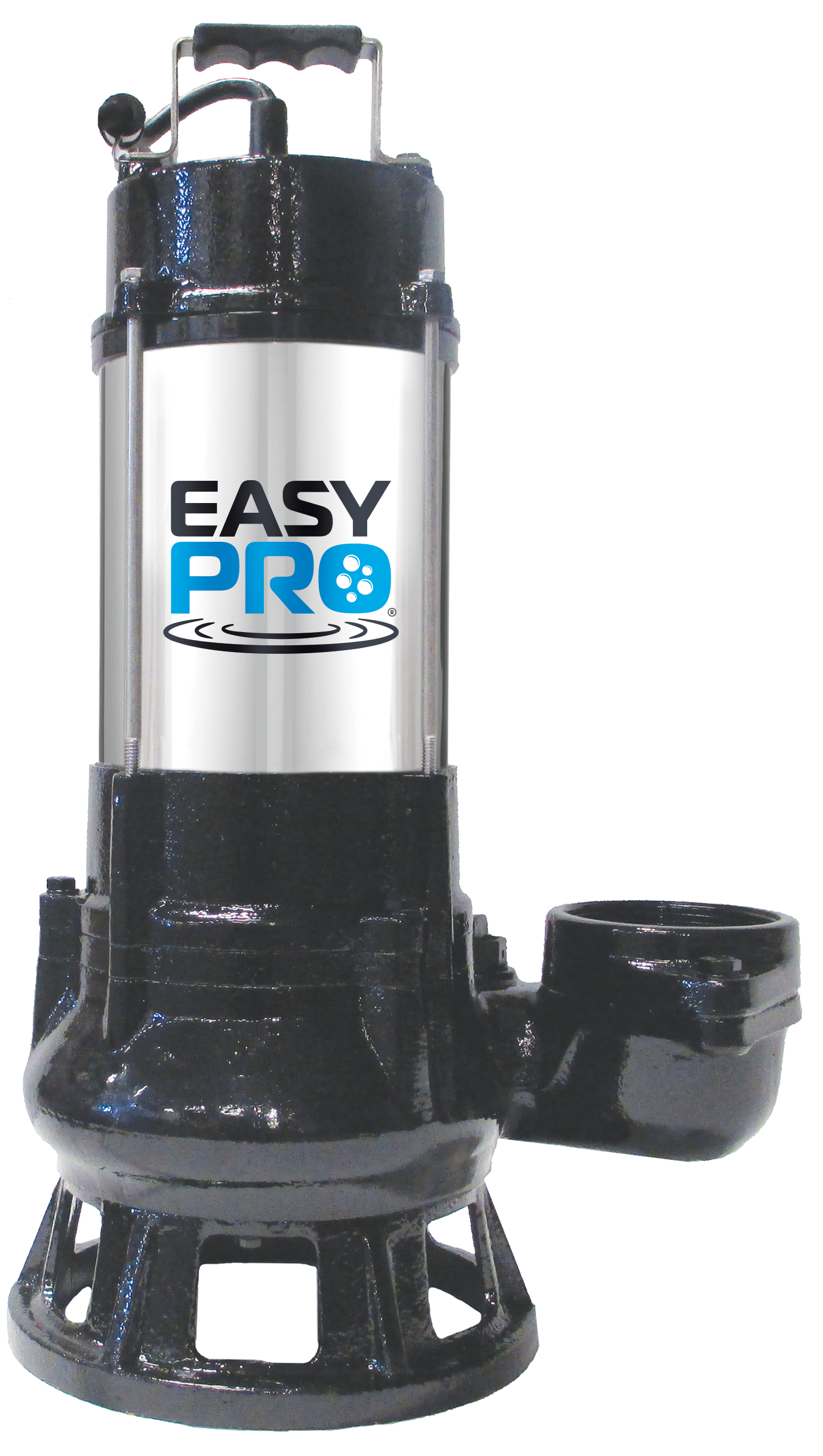

12000 GPH 230v Stainless Steel TB Series™ High Head Pump For Large Water Features
TB Series submersible pumps are perfect for high head streams and waterfalls. Their compact design and unmatched durability allows for use in large skimmers or pump vaults in continuous duty pond and water feature applications.
Features
-
3″ outlets with 20′ power cords and thermal overload protection
-
Top-quality Japanese double mechanical seals – over 100,000-hour life expectancy
-
230 volt (1 hp available in 230v or 115v)
-
Designed for use with higher head pressure
-
Applications: A minimum of 20' head pressure is required for TB12000 and TB14500. Use a ball valve to create back pressure if the system has less than 20' head pressure
Additional Information:
| Max Flow Rate |
12000 gph |
| Power Cord Length |
20' |
| Horsepower |
2hp |
| Voltage |
230v |
| Amps |
9.7 |
| Maximum Head |
60' |
| Outlet |
3" |
| Warranty |
2 years |
| Weight |
68 |
| Horsepower |
2 HP |
Downloadable Content
TB Series Pumps Data Sheet
TB Series Pumps Instruction Manual
