ProLake Floating Fountain 3400JF 3/4HP 6 Solar Panels with Grid Blender Option

ProLake Floating Fountain 3400JF 3/4HP 6 Solar Panels with Grid Blender Option

by ProLake
$11,253.00

Notify me when back in stock

Kasco Floating Fountain 3400JF 3/4HP 6 Solar Panels with Grid Blender Option

Capitalize on the unbeatable strength of Kasco products driven by the sun. This technology is easy to use and more powerful than anything on the market and is designed for use in applications spanning from farm ponds to harsh industrial environments. These patented controllers come solar + grid blender options. They are an all-in-one inverter and Variable Frequency Drive with maximum power point tracking designed to utilize the most solar power available.

Solar only systems use solar energy to maximize operation during daylight hours. In partial sunlight (morning and afternoon), the system will run at reduced speed extending the daily run time.

These packages includes

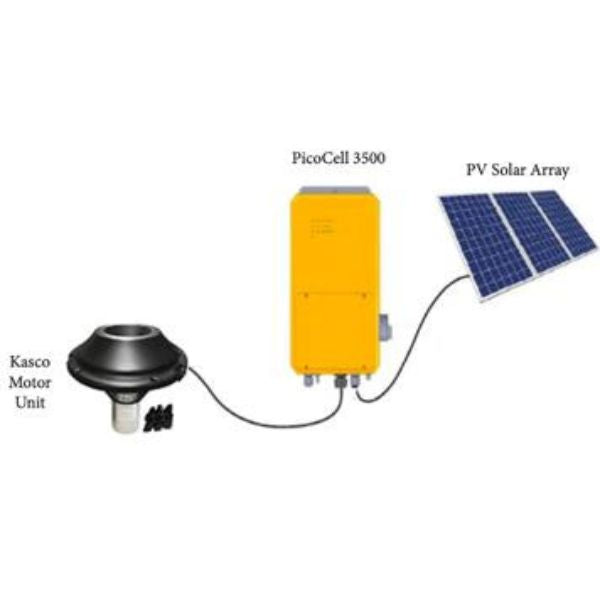

  • PicoCell™ 3500 Control Panel.
  • Blender Controller Option
  • These systems utilize solar power during the day and grid power at night to provide 24/7 performance. These packages include the PicoBlender™ 2500 Control Panel.
    • (morning and afternoon), the system will run at reduced speed extending the daily run time.



    Product Features
  • Operate standard Kasco 50hz / 60hz, 1/2-2HP units (2HP units must be 3 phase)
  • Soft start function to maximize runtime and extended available solar hours
  • Status LEDs to indicate operating status and fault conditions
  • Easily add additional solar panels to increase performance and extend daily run time from solar
  • GFCI motor protection
  • Comes with 6 solar panels
    • Complete Package Includes
  • PicoPanel Controller - Grid Blended (PicoBlender) or Direct Drive (PicoCell)
  • Solar Panel Racking - Includes poles and crossbeams
  • Solar Panels
  • Solar Panel Jumper Cables
  • Kasco Aerator/Fountain/Circulator
  • All Mounting Hardware
  • Direct Drive to operate when sun is out
  • Blend Option will use sun & grid power
  • Variable Frequency Drive provides soft start function to maximize daily run time
  • Sizing based on geographic location, run time required, and Kasco product being operated
  • Output of 120 or 240V single phase, or 230V 3 phase
  • Will run up to a 1HP on single phase and 2HP on 3-phase
    • PicoCell Panel Details
  • MPPT Operating Range of 100-380V
  • Max PV Panel open circuit voltage of 400V
  • Min operating PV voltage of 100V
  • Maximum PV Panel current 9 amps
  • Single phase max AC motor power of 13 amps
  • 3 phase max AC motor power of 10.5 amps
  • NEMA4/IP66 aluminum enclosure
  • Operating Temp of -40°F to 122°F
  • FCI motor protection is included

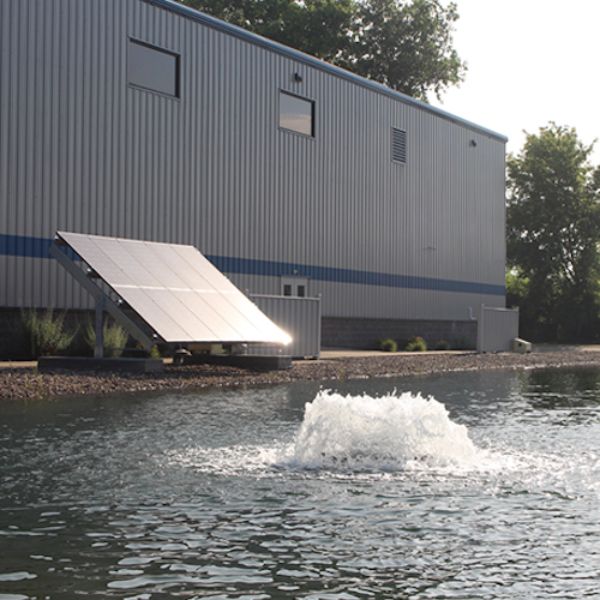

    • Ground Mount Racking
  • 5-40O tilt angles
  • Slide in connections for easy installation
  • Galvanized steel construction
  • Concrete foundation required
  • 125mph wind rating
  • Up to 80 PSF snow load
    • PicoBlender Panel Details
  • Blends solar PV & electric grid power
  • Maintains full power 24/7
  • AC input voltage range of 120-240Vac single phase
  • AC max input current 12 amp
  • Single phase max AC motor power of 10 amps
  • Three phase max AC motor power of 8 amps
  • Solar PV operating range of 100-400Vdc
  • Maximum PV Panel current 9 amps
  • NEMA3R/IP65 aluminum enclosure
  • Operating Temp of -40°F to 122°F
  • GFCI motor protection is included
    • PV Solar Panels
  • Minimum 325+watt polycrystalline photovoltaic panels
  • Dimensions: 77” x 39” x 1.6”
  • Operating Temperature Range: -40°F – 185°F
    • Solar Only Option

    Operate a unit at variable speed to maximize the energy from the sun. In partial sun light (morning and afternoon) the unit will run at reduced speed, as to not shut off completely, extending the daily run time.

    Blender Controller Option

    Combine the solar only controller capabilities with grid power to save energy costs and allow for full speed, 24/7 operation.

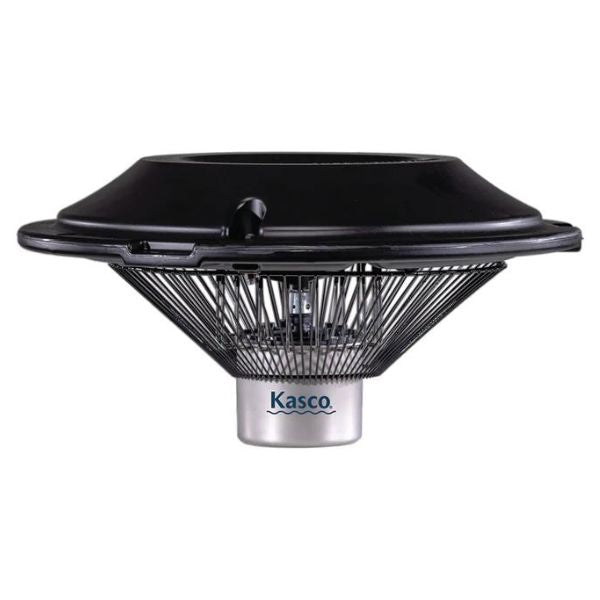

    The popular 3400JF model is great for medium size ponds and when multiple fountain patterns are desired.

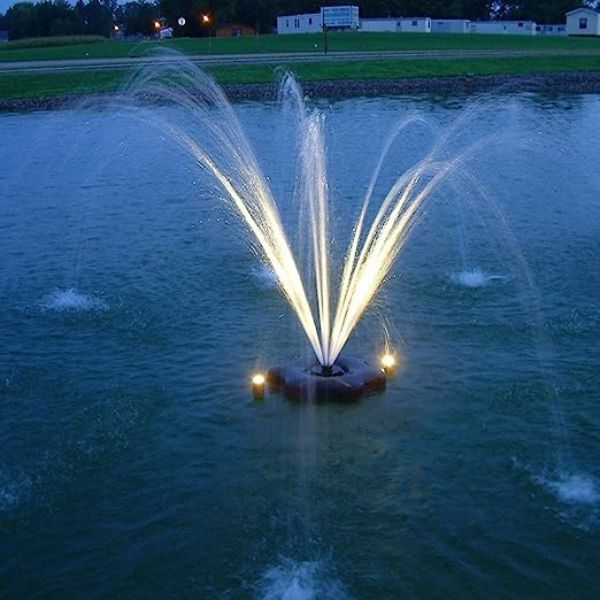

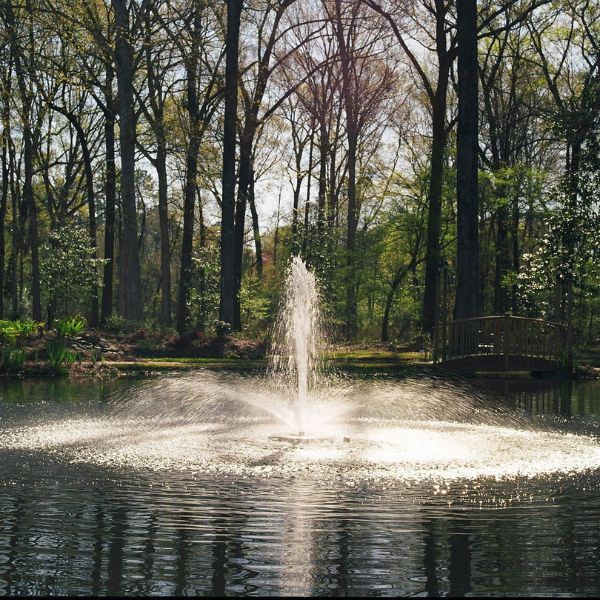

    It comes standard with 5 interchangeable nozzles to give you 5 FOUNTAIN PATTERNS FOR THE PRICE OF ONE! The 5 fountain patterns range from 7' in height to 20' in diameter. With 5 multiple fountain patterns, you have the freedom to adjust the aerating fountain to fit your pond, weather conditions, and your tastes. It does a great job at adding oxygen and improving your pond or lake aeration.

    The 3400JF Floating Aerating Fountain is available in 120V and 240V, 60Hz models.

    The 3400JF includes a GFCI protected control box. The C-25, 120V control with timer, GFCI protection, and photo eye for light operation comes standard. The photo eye allows you to set your timer for the hours of operation and when it is dark the lights will activate. No electrician is required to install the C-25 Control or the 3400JF if an existing 120V, 15 amp receptacle is available.
