Kasco Floating Fountain 3400VFX 3/4HP 6 Solar Panels with Controller

Capitalize on the unbeatable strength of Kasco products driven by the sun. This technology is easy to use and more powerful than anything on the market and is designed for use in applications spanning from farm ponds to harsh industrial environments. These patented controllers come solar + grid blender options. They are an all-in-one inverter and Variable Frequency Drive with maximum power point tracking designed to utilize the most solar power available.

Solar only systems use solar energy to maximize operation during daylight hours. In partial sunlight (morning and afternoon), the system will run at reduced speed extending the daily run time.

These packages includes

PicoCell™ 3500 Control Panel.

Blender Controller Option

These systems utilize solar power during the day and grid power at night to provide 24/7 performance. These packages include the PicoBlender™ 2500 Control Panel.

(morning and afternoon), the system will run at reduced speed extending the daily run time.



Product Features

Operate standard Kasco 50hz / 60hz, 1/2-2HP units (2HP units must be 3 phase)

Soft start function to maximize runtime and extended available solar hours

Status LEDs to indicate operating status and fault conditions

Easily add additional solar panels to increase performance and extend daily run time from solar

GFCI motor protection

Comes with 6 solar panels

Complete Package Includes

PicoPanel Controller - Grid Blended (PicoBlender) or Direct Drive (PicoCell)

Solar Panel Racking - Includes poles and crossbeams

Solar Panels

Solar Panel Jumper Cables

Kasco Aerator/Fountain/Circulator

All Mounting Hardware

Direct Drive to operate when sun is out

Blend Option will use sun & grid power

Variable Frequency Drive provides soft start function to maximize daily run time

Sizing based on geographic location, run time required, and Kasco product being operated

Output of 120 or 240V single phase, or 230V 3 phase

Will run up to a 1HP on single phase and 2HP on 3-phase

PicoCell Panel Details

MPPT Operating Range of 100-380V

Max PV Panel open circuit voltage of 400V

Min operating PV voltage of 100V

Maximum PV Panel current 9 amps

Single phase max AC motor power of 13 amps

3 phase max AC motor power of 10.5 amps

NEMA4/IP66 aluminum enclosure

Operating Temp of -40°F to 122°F

FCI motor protection is included

Ground Mount Racking

5-40O tilt angles

Slide in connections for easy installation

Galvanized steel construction

Concrete foundation required

125mph wind rating

Up to 80 PSF snow load

PicoBlender Panel Details

Blends solar PV & electric grid power

Maintains full power 24/7

AC input voltage range of 120-240Vac single phase

AC max input current 12 amp

Single phase max AC motor power of 10 amps

Three phase max AC motor power of 8 amps

Solar PV operating range of 100-400Vdc

Maximum PV Panel current 9 amps

NEMA3R/IP65 aluminum enclosure

Operating Temp of -40°F to 122°F

GFCI motor protection is included

PV Solar Panels

Minimum 325+watt polycrystalline photovoltaic panels

Dimensions: 77” x 39” x 1.6”

Operating Temperature Range: -40°F – 185°F

Solar Only Option

Operate a unit at variable speed to maximize the energy from the sun. In partial sun light (morning and afternoon) the unit will run at reduced speed, as to not shut off completely, extending the daily run time.

Blender Controller Option

Combine the solar only controller capabilities with grid power to save energy costs and allow for full speed, 24/7 operation.

The Kasco 1/2 HP 2400 VFX Aerator for Ponds

For the leader in pond aeration, look no further than Kasco. The Kasco 2400 VFX 1/2 HP aerator is perfect for ponds up to 1/2 acre in size. This 1/2 HP pond aerator comes equipped with a control panel, mooring ropes and protective screening. These units deliver low operating costs and are extremely easy to install.

If you have a shallow pond, don’t worry. This floating aerator can operate in depths of as little as 15 inches.

Kasco 3400JF 3/4 HP Pond Fountain

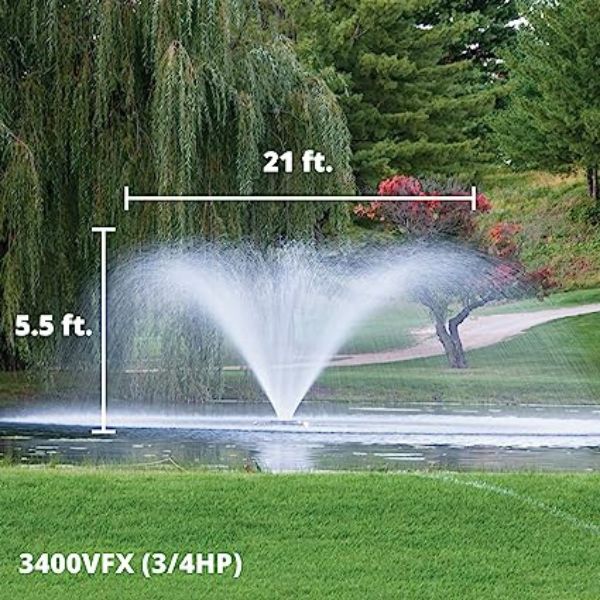

Designed to provide optimum performance with a stunning display, Kasco 3400VFX aerating fountains are proven performers ideal for small to mid-size ponds and lakes. The 5.5 ft. tall by 21 ft. wide classic Kasco “V” fountain pattern gives this model a beautiful and dramatic display. The 3/4HP motor is designed for maximum oxygenation to effectively improve the health of your pond or lake.

Kasco VFX Series Aerating Fountains set the standard by which all aerating pond fountains are measured. These units deliver both superior oxygenation and aesthetic brilliance, making this a true dual-purpose fountain. As the leader in pond aeration, our VFX aerating fountains have been designed with our clog-resistant technology to ensure you are buying the most efficient unit on the market. Use our VFX Series in your pond, on the lake, in a landscaped water body, or even in industrial applications to help promote evaporation.

Self-contained floating units

Kasco 3400VFX 3/4 HP Features

Brilliant V-shaped circular display patterns

Outstanding oxygen transfer rates

Extremely efficient — low operating costs

Durable and corrosion resistant

Unique clog-resistant design

Minimum operating depth 17.5?

3/4 Horsepower

Available in 120 or 240 Volt

Includes Fountain, C-25 or C-85 Control Panel, 100? Motor Cable with factory installed quick disconnect
