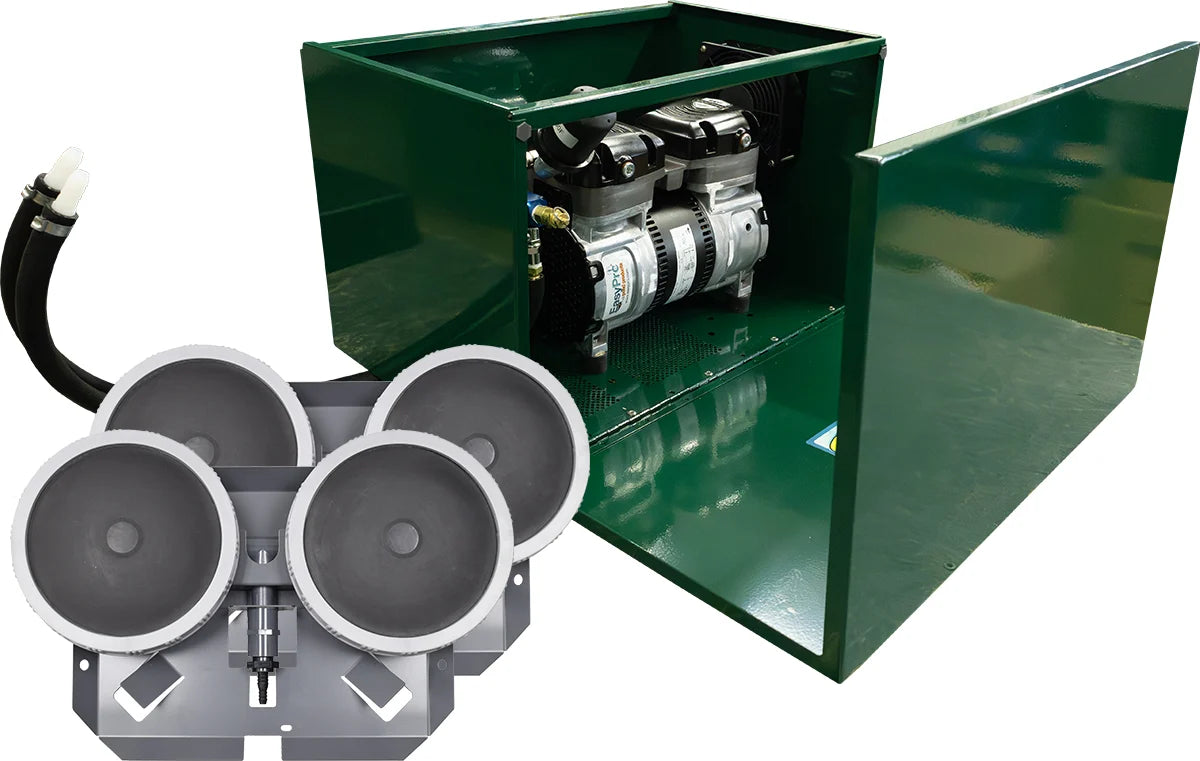

Sentinel Deluxe Aeration System for Ponds up to 2 Acres – Complete System Contains Stratus™ SRC 1/2hp Compressor with Sound Shield™, Deluxe 18" Cabinet and Two QS2 Diffusers

The PA65ADP Sentinel Deluxe Aeration System is a complete pond aeration package designed for convenient installation and reliable operation. The system combines a ½-HP Stratus SRC air compressor with a pre-installed Sound Shield, a locking aeration cabinet, dual QuickSink weighted diffusers, and pre-installed air and electrical components.

The SC18 Deluxe 18-inch locking cabinet can be either post-mounted or ground-mounted and includes noise-reducing foam. The system also features a pre-installed valved outlet assembly, pressure gauge, pressure relief valve, cooling fan, and electrical box with outlet, helping simplify installation.

Two QS2 QuickSink weighted dual-head diffusers are included, providing approximately 2.2 CFM of airflow per diffuser. Tubing is sold separately.

Key Features & Benefits

• ½-HP Stratus SRC Air Compressor – Includes a pre-installed Sound Shield for quieter operation.
• Deluxe 18-Inch Locking Cabinet – Can be post-mounted or ground-mounted.
• Noise-Reducing Foam – Pre-installed inside the cabinet.
• Pre-Installed Components – Includes valved outlet assembly, pressure gauge, pressure relief valve, and cooling fan.
• Electrical Box & Outlet – Pre-installed and ready for the incoming power line.
• Heat-Reducing Hose – Includes 3/8-inch connections.
• Two QS2 QuickSink Diffusers – Dual-head weighted diffusers provide approximately 2.2 CFM of airflow per diffuser.
• Flexible Cabinet Installation – Includes hardware for either post-mounted or ground-mounted placement.
• Tubing Sold Separately – Purchase tubing separately based on installation requirements.
• Two-Year Compressor Warranty – Compressor is backed by a two-year warranty.
• Five-Year Diffuser & Cabinet Warranty – Diffusers and cabinet are backed by a five-year warranty.

Specifications

• Model: PA65ADP
• Compressor: SRC50SS Stratus™ SRC ½-HP Air Compressor
• Sound Shield: Pre-installed
• Cabinet: SC18 Deluxe 18" Locking Cabinet
• Diffusers: Two QS2 QuickSink Weighted Dual-Head Diffusers
• Airflow: Approximately 2.2 CFM per diffuser
• Air Tubing: Sold separately
• Cabinet Mounting: Post or ground mounted
• Connections: 3/8"
• Compressor Warranty: 2 years
• Diffuser & Cabinet Warranty: 5 years
• Typical Operating Cost: $0.86 per 24 hours at $0.09 per kWh; actual cost may vary
