Scott Aerator Atriarch Fountain | Brass Pond & Lake Fountain

Specifications

• Models: Atriarch Fountain 1 HP, Atriarch Fountain 1½ HP
• Motor: 1 HP, 115/230 V & 1½ HP, 230 V Oil-Free Motors
• Flow Rate: 75 GPM for 1 HP; 90 GPM for 1½ HP
• Spray Dimensions: 30' × 40' for 1 HP; 40' × 50' for 1½ HP
• Electrical: 60 Hz, Single-Phase, 3,450 RPM

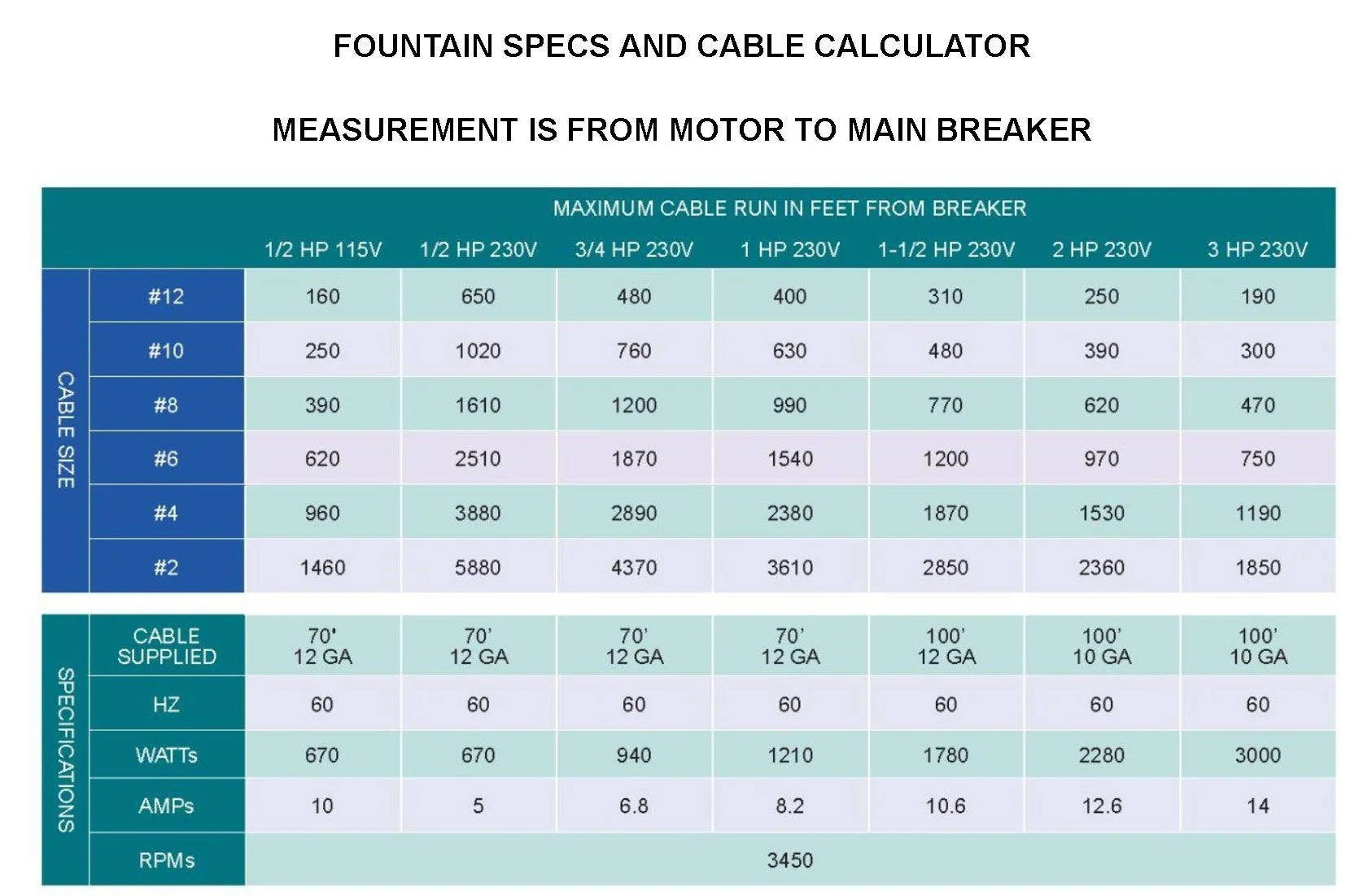

• Power Cord: 100' Submersible Cord; 10-Gauge 115 V / 12-Gauge 230 V for 1 HP; 12-Gauge 230 V for 1½ HP
• Warranty: 5-Year Motor Warranty
• Minimum Water Depth: 44" for 1 HP; 50" for 1½ HP
• Features: Saltwater Approved; Optional Light Kits Available; 24-Hour-Per-Day Operation; No Maintenance Required
• Anchoring: Two 35-lb. Weights for 1 HP; Two 45-lb. Weights for 1½ HP; Two Nylon Ropes Required; Not Included
• Safety: GFCI Required; Disconnect Power When Swimmers Are Present
• Compliance: ARL-Tested and Compliant with UL Standards and the National Electric Code When Installed as a Complete Package

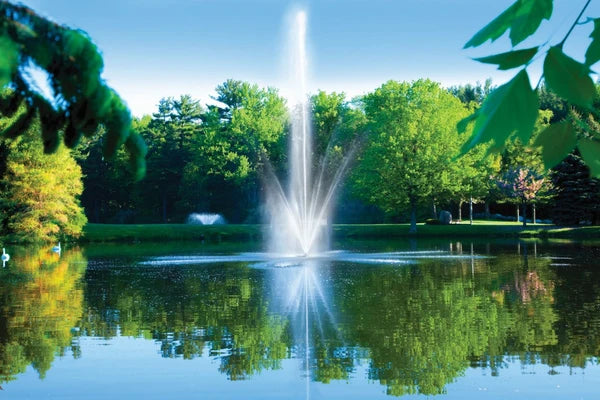

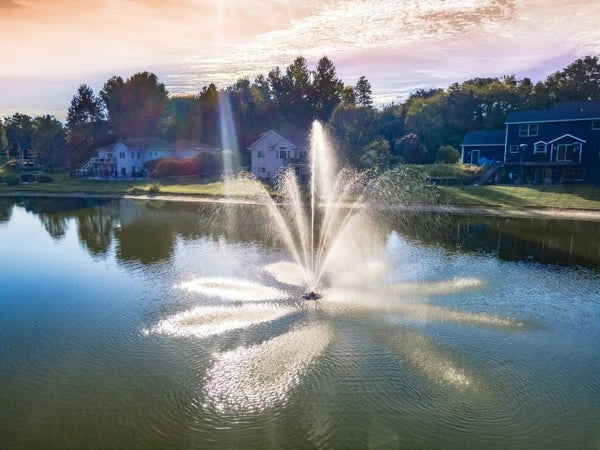

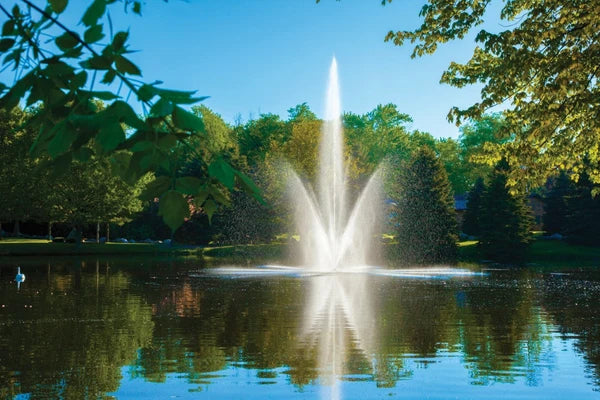

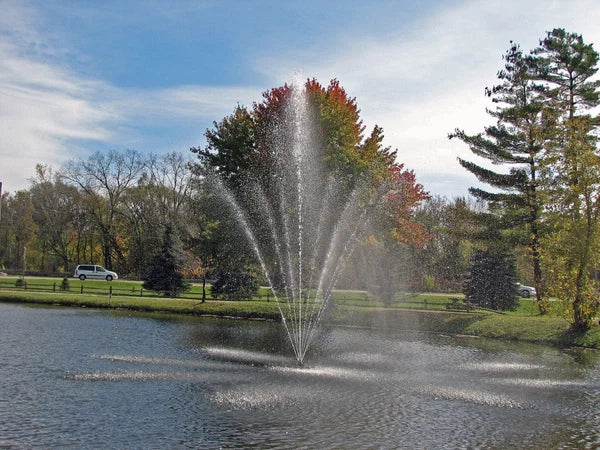

The Scott Aerator Atriarch Fountain combines elegant design with powerful water movement to create a peaceful and mesmerizing focal point for ponds and lakes. Its distinctive brass nozzle configuration produces a vibrant water display that enhances both residential and commercial water features.

The Atriarch features a solid brass center nozzle surrounded by eight individual brass nozzles, creating an attractive and dynamic fountain display. For an even more striking presentation after dark, an optional LED light set can transform the fountain into a vibrant nighttime spectacle.

Beyond its visual appeal, the Atriarch Fountain helps promote a healthier aquatic environment by improving water circulation and increasing oxygen levels.

Key Features & Benefits

• Distinctive Brass Nozzle Design – Features a solid brass center nozzle surrounded by eight individual brass nozzles.
• Vibrant Water Display – Creates an elegant and captivating focal point for ponds and lakes.
• Residential & Commercial Use – Designed for a variety of residential and commercial water features.
• Optional LED Lighting – Add an LED light set to create an impressive nighttime display.
• Improves Water Circulation – Helps keep water moving throughout the pond or lake.
• Increases Oxygen Levels – Enhanced circulation supports improved oxygen distribution and healthier water conditions.
• Winter-Ready Design – Built to withstand freezing conditions without requiring complex or expensive winterizing procedures.
• Easy Winter Preparation – Simply turn off the power and leave the unit in the water during freezing conditions; restore power once the ice melts.
• Stainless Steel, Oil-Free Motor – Durable submersible motor requires no oil changes.
• Low-Maintenance Operation – No routine oil changes or external control box required.
• Freshwater & Saltwater Compatible – Designed for use in both fresh and salt water.
• Made in the USA – Proudly manufactured in Holland, Michigan.
• 5-Year Motor Warranty – Backed by an unconditional 5-year motor warranty.

Winter Operation

The Atriarch Fountain is engineered to withstand harsh winter conditions without complicated or costly winterizing procedures. Simply shut off the power and leave the unit in the water during freezing conditions. Once temperatures rise and the ice melts, restore power and the fountain is ready to operate.

Scott Aerator Atriarch Fountain For Medium Residential Ponds

• ATRIARCH FOUNTAIN, 1 HP 115 V, 100 FT 10-2
• ATRIARCH FOUNTAIN, 1 HP 230 V, 100 FT 12-2
• ATRIARCH FOUNTAIN, 1 HP 230 V, 150 FT 12-2
• ATRIARCH FOUNTAIN, 1 HP 230 V, 200 FT 12-2
• ATRIARCH FOUNTAIN, 1 HP 230 V, 250 FT 12-2
• ATRIARCH FOUNTAIN, 1-1/2 HP 230 V, 100 FT 12-2
• ATRIARCH FOUNTAIN, 1-1/2 HP 230 V, 150 FT 12-2
• ATRIARCH FOUNTAIN, 1-1/2 HP 230 V, 200 FT 12-2
• ATRIARCH FOUNTAIN, 1-1/2 HP 230 V, 250 FT 12-2
