Bubble Pro Max – Subsurface Pond Aeration System

Specifications

• Compressor: ½ HP rocking piston compressor
• Diffusers: Three double diffusers
• Tubing: Three lengths of 100-foot by 3/8-inch quick-sink weighted tubing
• Air Outlet Assembly: Valved air outlet assembly with individual controls for each hose and a pressure relief valve
• Included Components: All required fittings and clamps
• Coverage Area: ¾ acre at 5–8 feet pond depth; 1½ acres at 9–12 feet pond depth; 3 acres at 13–16 feet pond depth

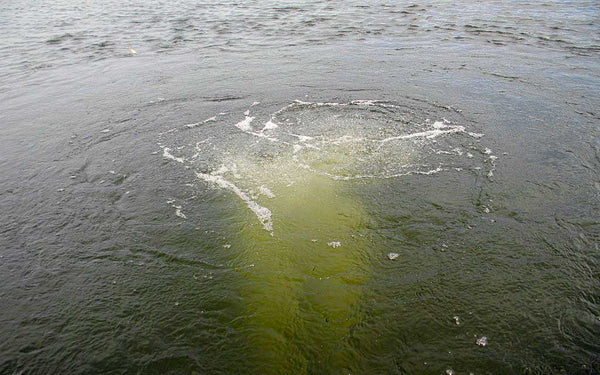

Subsurface pond aeration improves overall water health by delivering oxygen throughout the water column without disrupting the pond’s natural appearance. A diffuser positioned on the pond floor releases microbubbles that rise toward the surface, gently circulating the water and bringing oxygen-depleted bottom water upward for natural reoxygenation.

The Bubble Pro Max is engineered for straightforward installation and reliable performance. It is available in both 115V and 230V configurations and is backed by a two-year warranty.

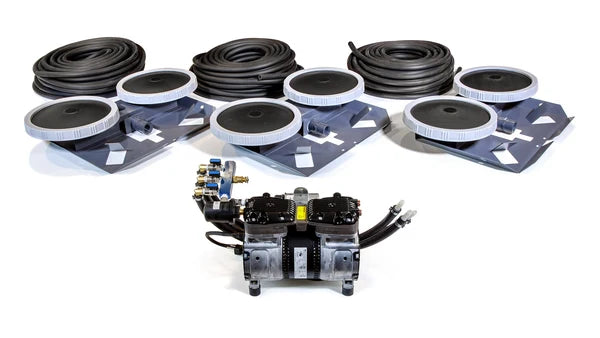

Complete Bubble Pro Max System

The Bubble Pro Max includes everything needed for a three-diffuser subsurface aeration setup:

• Three Diffusers – Positioned on the pond bottom to release oxygen-rich microbubbles.
• Three 100-Foot Lengths of 3/8-Inch Quick-Sink Weighted Tubing – Provides weighted airline connections between the compressor and diffusers.
• ½-HP Rocking-Piston Compressor – Delivers air to the subsurface diffuser system.
• Valved Air Outlet Assembly – Includes individual controls for each hose.
• Pressure Relief Valve – Included as part of the air outlet assembly.
• Required Fittings & Clamps – Includes the necessary fittings and clamps for installation.

Key Features & Benefits

• Subsurface Aeration – Delivers oxygen throughout the water column while maintaining the pond’s natural appearance.
• Three-Diffuser System – Provides multiple points of aeration along the pond bottom.
• Microbubble Circulation – Rising bubbles gently circulate water and bring oxygen-depleted bottom water toward the surface.
• ½-HP Rocking-Piston Compressor – Provides the air supply for the aeration system.
• Quick-Sink Weighted Tubing – Includes three 100-foot lengths of 3/8-inch weighted airline tubing.
• Individual Air Controls – Allows adjustment of airflow to each diffuser.
• Pressure Relief Valve – Included for the air outlet assembly.
• 115V & 230V Options – Available in both voltage configurations.
• Straightforward Installation – Includes the fittings and clamps required for setup.
• Two-Year Warranty – Backed by a two-year warranty.
• De-Icing Solution – The Bubble Pro Max can also be used as an option for de-icing applications.

Scott Aerator Bubble Pro Max Subsurface Aerators

• BUBBLE PRO MAX SUB-SURFACE AERATOR, 1/2 HP 115V
• BUBBLE PRO MAX SUB-SURFACE AERATOR, 1/2 HP 230V
