Bubble Pro Max XL – Subsurface Pond Aeration System

Specifications

• Compressor: ¾ HP rocking piston compressor
• Diffusers: Four double diffusers
• Tubing: Four lengths of 100-foot by 3/8-inch quick-sink weighted tubing
• Air Outlet Assembly: Valved air outlet assembly with individual controls for each hose and a pressure relief valve
• Included Components: All required fittings and clamps
• Coverage Area: 1 acre at 5–8 feet pond depth; 2 acres at 9–12 feet pond depth; 4 acres at 13–16 feet pond depth

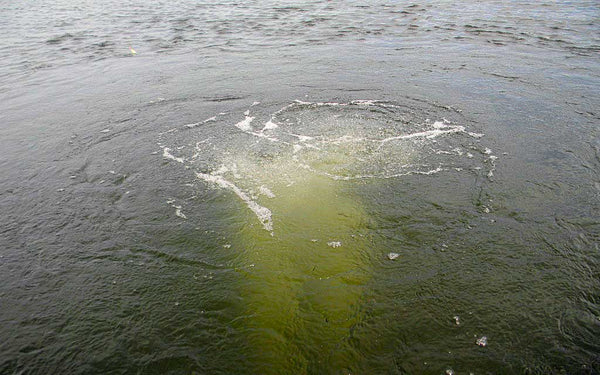

Subsurface aeration helps support healthier pond conditions by distributing oxygen from the bottom up while maintaining a natural, unobtrusive appearance. Air is delivered from a land-based compressor through weighted tubing to diffusers positioned on the pond bottom. As the diffusers release fine air bubbles, they rise through the water column, creating continuous circulation that brings oxygen-poor water toward the surface for natural reoxygenation.

The Bubble Pro Max XL is designed with straightforward installation and dependable performance in mind. The system is available in both 115V and 230V configurations and includes a two-year warranty.

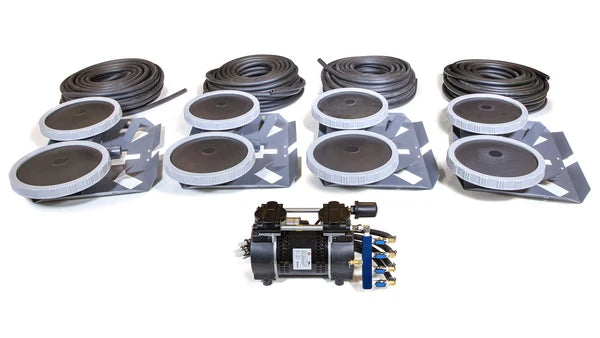

Complete Bubble Pro Max XL System

The Bubble Pro Max XL includes everything needed for a four-diffuser subsurface aeration setup:

• Four Diffusers – Positioned on the pond bottom to release fine air bubbles.
• Four 100-Foot Lengths of 3/8-Inch Quick-Sink Weighted Tubing – Provides weighted airline connections between the compressor and diffusers.
• ¾-HP Rocking-Piston Compressor – Delivers air to the subsurface aeration system.
• Valved Air Outlet Assembly – Includes individual controls for each hose.
• Pressure Relief Valve – Included as part of the air outlet assembly.
• Required Fittings & Clamps – Includes the fittings and clamps needed for installation.

Key Features & Benefits

• Subsurface Pond Aeration – Helps distribute oxygen throughout the water column from the bottom up.
• Four-Diffuser System – Provides multiple aeration points along the pond bottom.
• Fine Air Bubbles – Creates continuous water movement as bubbles rise toward the surface.
• ¾-HP Rocking-Piston Compressor – Provides the air supply for the system.
• Quick-Sink Weighted Tubing – Includes four 100-foot lengths of 3/8-inch weighted airline tubing.
• Individual Airflow Controls – Allows airflow to each hose to be controlled separately.
• Pressure Relief Valve – Included with the valved air outlet assembly.
• 115V & 230V Options – Available in two power configurations for different site requirements.
• Straightforward Installation – Includes required fittings and clamps.
• Two-Year Warranty – Backed by a two-year warranty.
• Ice-Prevention Solution – The Bubble Pro series can also be used to help prevent ice formation in cold climates.

Scott Aerator Bubble Pro Max XL Subsurface Aerators

• BUBBLE PRO MAX XL SUB-SURFACE AERATOR, 3/4 HP 115V
• BUBBLE PRO MAX XL SUB-SURFACE AERATOR, 3/4 HP 230V
