Scott Aerator Great Lakes Fountain | 1–1½ HP Five-Pattern Pond Fountain
Specifications
-
Models: The Great Lakes Fountain 1 HP, The Great Lakes Fountain 1½ HP
-
Motor: 1 HP, 115/230 V; 1½ HP, 230 V Oil-Free Motor
-
Electrical: 60 Hz, Single-Phase, 3,450 RPM; 0.75 kW for 1 HP / 1.1 kW for 1½ HP
-
Current Draw: 11.5 Amps at 115 V / 8.2 Amps at 230 V for 1 HP; 10.6 Amps at 230 V for 1½ HP
-
Flow Rate: 75 GPM for 1 HP; 90 GPM for 1½ HP
-

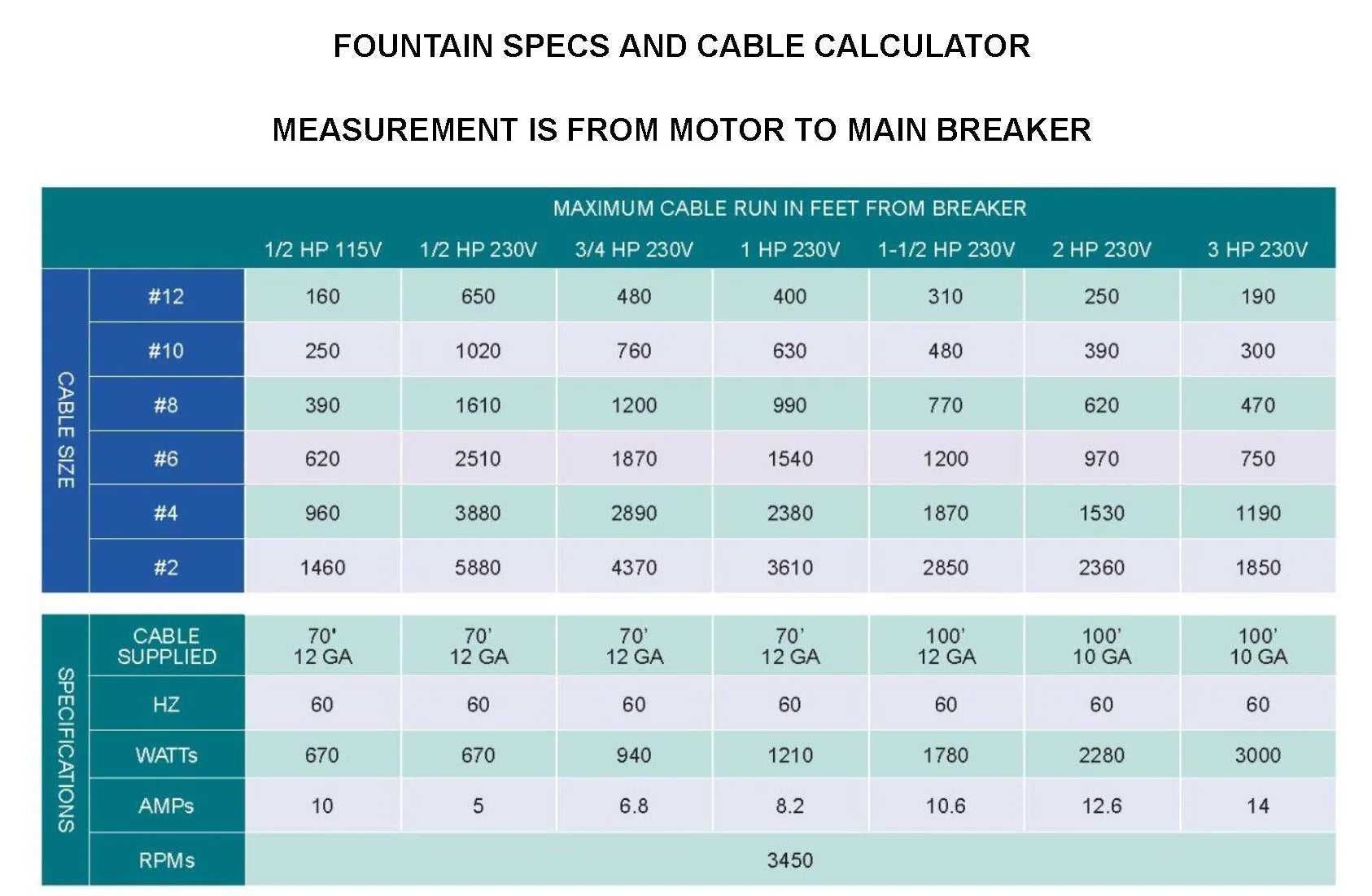

Power Cord: 100' Submersible Cord; 10-Gauge 115 V / 12-Gauge 230 V; Longer Lengths Available
-
Warranty: 5-Year Motor Warranty
-
Minimum Water Depth: 44" for 1 HP; 50" for 1½ HP
-
Features: Saltwater Approved; Optional Light Kits Available; 24-Hour-Per-Day Operation; No Maintenance Required
-
Nozzles: 1 HP — Cambridge, Baystone, Gusher, Tudor & Millbrook; 1½ HP — Rosewood, Baystone, Gusher, Tudor & Millbrook
-
Anchoring: Two 35-lb. Weights for 1 HP; Two 45-lb. Weights for 1½ HP; Two Nylon Ropes Required; Not Included
-
Safety: GFCI Required; Disconnect Power When Swimmers Are Present
-
Compliance: ARL-Tested and Compliant with UL Standards and the National Electric Code When Installed as a Complete Package
The Scott Aerator Great Lakes Fountain offers five fountains in one, giving you incredible variety with five interchangeable brass nozzles. Each nozzle can be changed in minutes without tools, allowing you to easily customize your pond’s water display while supporting a healthier aquatic environment.
Key Features & Benefits
-
Five Fountains in One – Includes five interchangeable brass nozzle options for a variety of elegant water displays.
-
Tool-Free Nozzle Changes – Easily switch between spray patterns in minutes without requiring tools.
-
1 & 1½ HP Models – Available in two powerful motor options for residential pond applications.
-
Cambridge Pattern – 1 HP – Produces a classic multi-tiered spray pattern reaching up to 30 feet high × 40 feet wide.
-

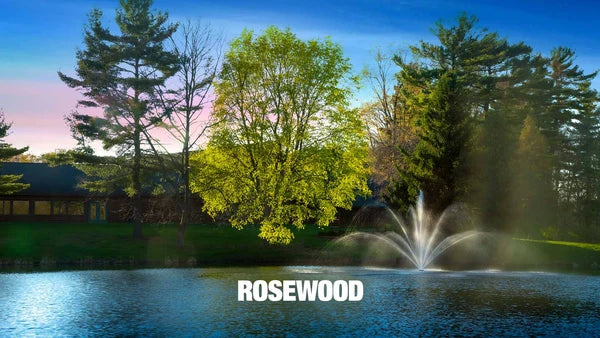

Rosewood Pattern – 1½ HP – Produces a multi-tiered classic spray pattern reaching up to 35 feet high × 45 feet wide.
-

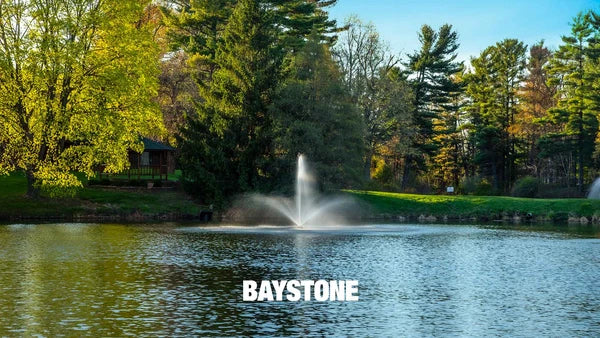

Baystone Pattern – 1 HP – Creates a center peak with a traditional outer spray pattern reaching up to 14 feet high × 30 feet wide.
-
Baystone Pattern – 1½ HP – Reaches up to 18 feet high × 35 feet wide.
-

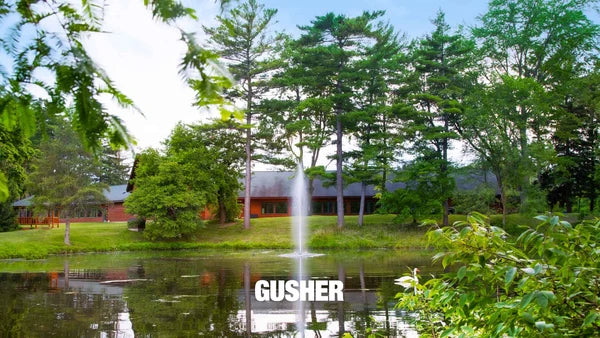

Gusher Pattern – 1 HP – Produces a voluminous vertical column reaching up to 25 feet high.
-
Gusher Pattern – 1½ HP – Reaches up to 30 feet high.
-

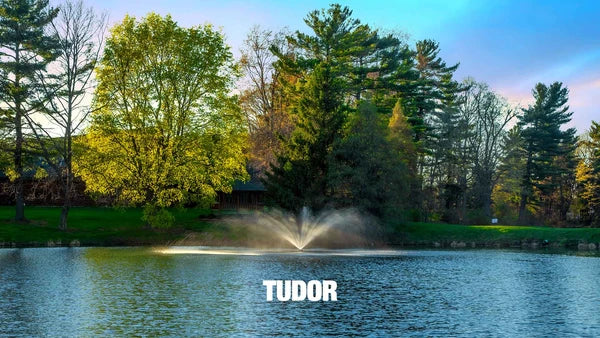

Tudor Pattern – 1 HP – Creates a horizontal conical spray pattern reaching up to 12 feet high × 40 feet wide.
-
Tudor Pattern – 1½ HP – Reaches up to 14 feet high × 45 feet wide.
-

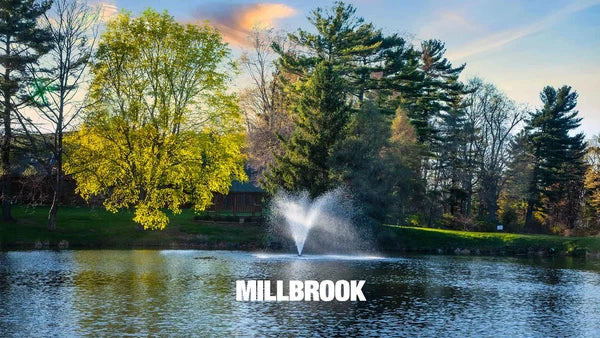

Millbrook Pattern – 1 HP – Produces a vertical conical spray pattern reaching up to 15 feet high × 30 feet wide.
-
Millbrook Pattern – 1½ HP – Reaches up to 18 feet high × 35 feet wide.
-
Supports Pond Health – Water movement helps promote circulation and a healthier aquatic environment.
-
Dynamic Water Display – Provides a beautiful and customizable focal point for your pond.
-
Winter-Ready Construction – Engineered to withstand harsh conditions and subzero temperatures without damage.
-
Simple Winter Preparation – Shut off the power and leave the fountain in place during winter; restore power after the ice thaws.
-
Stainless Steel, Oil-Free Motor – Durable submersible motor requires no oil changes.
-
Low-Maintenance Operation – No oil changes, routine maintenance, or control box required.
-
Freshwater & Saltwater Compatible – Designed for use in both fresh and salt water.
-
Made in the USA – Proudly manufactured in Holland, Michigan.
-
5-Year Motor Warranty – Backed by an unconditional 5-year motor warranty.
Spray Pattern Options
Cambridge
- 1 HP: Up to 30 feet high × 40 feet wide
Rosewood
- 1½ HP: Up to 35 feet high × 45 feet wide
Baystone
- 1 HP: Up to 14 feet high × 30 feet wide
- 1½ HP: Up to 18 feet high × 35 feet wide
Gusher
- 1 HP: Up to 25 feet high
- 1½ HP: Up to 30 feet high
Tudor
- 1 HP: Up to 12 feet high × 40 feet wide
- 1½ HP: Up to 14 feet high × 45 feet wide
Millbrook
- 1 HP: Up to 15 feet high × 30 feet wide
- 1½ HP: Up to 18 feet high × 35 feet wide
Any of the five spray options promotes a healthy aquatic environment while providing a dynamic, beautiful water display.
Winter Operation
The Great Lakes Fountain is built to withstand freezing conditions without complicated or costly winterizing procedures. Simply turn off the power and leave the unit in place during winter. When spring arrives and the ice thaws, restore power and the fountain is ready to run.
Scott Aerator Great Lakes Fountain For Medium Residential Ponds
- GREAT LAKES FOUNTAIN, 1 HP 115 V, 100 FT 10-2
- GREAT LAKES FOUNTAIN, 1 HP 230 V, 100 FT 12-2
- GREAT LAKES FOUNTAIN, 1 HP 230 V, 150 FT 12-2
- GREAT LAKES FOUNTAIN, 1 HP 230 V, 200 FT 12-2
- GREAT LAKES FOUNTAIN, 1 HP 230 V, 250 FT 12-2
- GREAT LAKES FOUNTAIN, 1-1/2 HP 230 V, 100 FT 12-2
- GREAT LAKES FOUNTAIN, 1-1/2 HP 230 V, 150 FT 12-2
- GREAT LAKES FOUNTAIN, 1-1/2 HP 230 V, 200 FT 12-2
- GREAT LAKES FOUNTAIN, 1-1/2 HP 230 V, 250 FT 12-2
