Skyward Fountain – Large Residential & Commercial Models
Specifications
-
Models: Skyward Fountain ¾ HP, Skyward Fountain 1 HP, Skyward Fountain 1½ HP
-
Motor: ¾ HP & 1 HP, 115/230 V; 1½ HP, 230 V Oil-Free Motors
-
Electrical: 60 Hz, Single-Phase, 3,450 RPM; 0.55 kW for ¾ HP / 0.75 kW for 1 HP / 1.1 kW for 1½ HP
-
Current Draw: 10.7 Amps at 115 V / 6.8 Amps at 230 V for ¾ HP; 11.5 Amps at 115 V / 8.2 Amps at 230 V for 1 HP; 10.6 Amps at 230 V for 1½ HP
-
Flow Rate: 60 GPM for ¾ HP; 75 GPM for 1 HP; 90 GPM for 1½ HP
-
Spray Dimensions: 25' High × 30' Wide for ¾ HP; 30' High × 35' Wide for 1 HP; 40' High × 50' Wide for 1½ HP; Height Adjustable
-
Power Cord: 70' for ¾ HP; 100' for 1 HP & 1½ HP; Longer Lengths Available
-
Warranty: 5-Year Motor Warranty
-
Minimum Water Depth: 40" for ¾ HP; 44" for 1 HP; 50" for 1½ HP
-
Features: Saltwater Approved; Optional Light Kits Available; 24-Hour-Per-Day Operation; No Maintenance Required
-
Anchoring: Two 20-lb. Weights for ¾ HP; Two 35-lb. Weights for 1 HP; Two 45-lb. Weights for 1½ HP; Two Nylon Ropes Required; Not Included
-
Safety: GFCI Required; Disconnect Power When Swimmers Are Present
-
Compliance: ARL-Tested and Compliant with UL Standards and the National Electric Code When Installed as a Complete Package

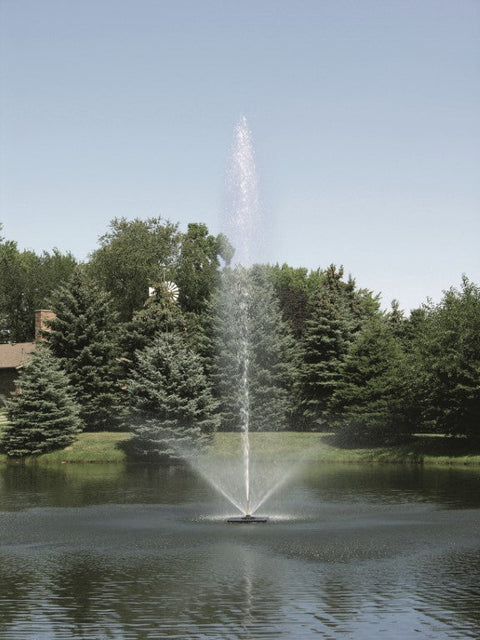

The ¾-, 1-, and 1½-hp Skyward Fountain creates a wide, spreading water display that combines visual appeal with soothing water sounds. Its elegant spray pattern makes a striking addition to lakes and larger ponds.
The center column is adjustable for height and reaches up to 40 feet, while the side jets extend up to 50 feet wide with the 1½-hp model. Optional lighting is also available for an attractive nighttime display.
Beyond its visual appeal, the Skyward Fountain supports a healthier aquatic environment by improving water circulation and increasing oxygen levels.
Key Features & Benefits
-
Wide, Spreading Spray Pattern – Creates an attractive water display that beautifully fills the surface of a lake or pond.
-
Adjustable Center Column – The center column can be adjusted for height and reaches up to 40 feet.
-
Large 1½-hp Spray Coverage – Side jets reach widths of up to 50 feet with the 1½-hp motor.
-
Multiple Motor Options – Available in ¾-, 1-, and 1½-hp models.
-

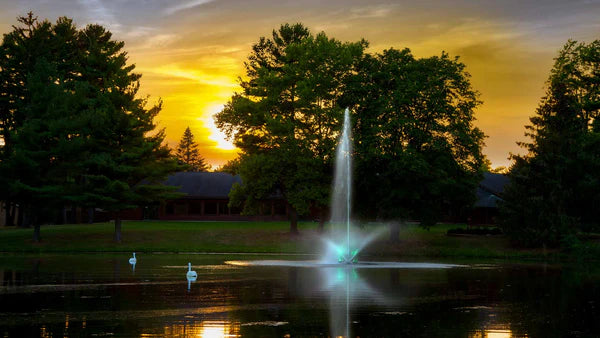

Optional Lighting – Add lighting for an elegant nighttime water display.
-
Improved Water Circulation – Helps circulate water throughout the pond or lake.
-
Increased Oxygen Levels – Supports a healthier aquatic environment by increasing oxygen in the water.
-
Fresh & Salt Water Compatible – Designed for use in both fresh and salt water.
-
Stainless-Steel, Oil-Free Motor – Provides durable, maintenance-free operation without the need for oil changes.
-
No Control Box Required – Designed for straightforward operation without a separate control box.
-
Made in the USA – Manufactured in Holland, Michigan.
-
5-Year Unconditional Motor Warranty – Backed by a 5-year warranty for added confidence.
Scott Aerator Skyward Fountain For Medium Residential Ponds
- SKYWARD FOUNTAIN, 3/4 HP 115 V, 100 FT 10-2
- SKYWARD FOUNTAIN, 3/4 HP 230 V, 100 FT 12-2
- SKYWARD FOUNTAIN, 3/4 HP 230 V, 150 FT 12-2
- SKYWARD FOUNTAIN, 3/4 HP 230 V, 200 FT 12-2
- SKYWARD FOUNTAIN, 3/4 HP 230 V, 250 FT 12-2
- SKYWARD FOUNTAIN, 1 HP 115 V, 100 FT 10-2
- SKYWARD FOUNTAIN, 1 HP 230 V, 100 FT 12-2
- SKYWARD FOUNTAIN, 1 HP 230 V, 150 FT 12-2
- SKYWARD FOUNTAIN, 1 HP 230 V, 200 FT 12-2
- SKYWARD FOUNTAIN, 1 HP 230 V, 250 FT 12-2
- SKYWARD FOUNTAIN, 1-1/2 HP 230 V, 100 FT 12-2
- SKYWARD FOUNTAIN, 1-1/2 HP 230 V, 150 FT 12-2
- SKYWARD FOUNTAIN, 1-1/2 HP 230 V, 200 FT 12-2
- SKYWARD FOUNTAIN, 1-1/2 HP 230 V, 250 FT 12-2
