Scott Aerator Solar Boilermaker Aerator | Solar-Powered Pond Aeration System

Specifications

• Models: 2-Panel Solar Boilermaker Aerator, 4-Panel Solar Boilermaker Aerator
• Solar Panels: 2 or 4 × 340-Watt, 60-Cell High-Efficiency Monocrystalline Panels; Each Measures 41" × 69"
• Motor: ½ HP, 48 V for 2-Panel; ¾ HP, 100 V for 4-Panel; Oil-Free, 3-Phase
• Flow Rate: 200 GPM for 2-Panel; 300 GPM for 4-Panel
• Motor Speed: 3,450 RPM
• Power Cord: 70' 12-Gauge Submersible Cord with Plug;
• Warranty: 5-Year Motor Warranty
• Minimum Water Depth: 36" for 2-Panel; 44" for 4-Panel
• Anchoring: Two 30-lb. Weights or Concrete Blocks Required; Not Included
• Features: Easy Installation; Saltwater Approved; No Maintenance Required
• Safety: GFCI Required; Disconnect Power When Swimmers Are Present
• Compliance: ARL-Tested and Compliant with UL Standards and the National Electric Code When Installed as a Complete Package

The Scott Aerator Solar Boilermaker Aerator is a clean, eco-friendly, and affordable aeration solution for remote ponds without reliable access to electricity. Designed for daytime operation, this solar-powered system uses a variable-speed, submersible Franklin Electric induction motor to deliver high-volume water circulation and effective oxygen transfer without relying on costly, high-maintenance battery systems.

Available with two or four solar panels, the Solar Boilermaker moves up to 200 gallons per minute with the two-panel model and up to 300 gallons per minute with the four-panel model. Its low-profile design minimizes the visible water display while maximizing circulation and aeration to support healthier pond conditions.

Key Features & Benefits

• Solar-Powered Aeration – Provides reliable daytime pond aeration without requiring a traditional electrical power source.
• Two Flow Options – Moves up to 200 GPM with the two-panel model or up to 300 GPM with the four-panel model.
• Variable-Speed Operation – Automatically adjusts water flow based on available sunlight.
• Low-Profile Design – Maximizes water circulation and oxygen transfer while minimizing the vertical water display.
• High-Volume Water Circulation – Improves oxygen transfer throughout the pond and supports healthier water conditions.
• Helps Reduce Muck – Increased oxygen supports the natural breakdown of decaying organic matter at the pond bottom.
• Surface Current – Powerful water movement helps eliminate surface algae and floating debris.
• Battery-Free Solar System – Operates directly from solar power without costly, high-maintenance battery storage.
• Automatic Daytime Operation – Powers up with sunlight, gradually increases flow as solar energy becomes available, and shuts down after dark.
• Stainless Steel, Oil-Free Motor – Durable and environmentally friendly submersible motor requires no oil changes.
• Winter-Ready Design – Can remain in the water during freezing conditions without complicated winterization procedures.
• Freshwater & Saltwater Compatible – Designed for use in both fresh and salt water.
• Made in the USA – Proudly manufactured by Scott Aerator Company in Holland, Michigan.
• 5-Year Motor Warranty – Backed by an unconditional 5-year motor warranty.

What's Included

• Boilermaker Aerator

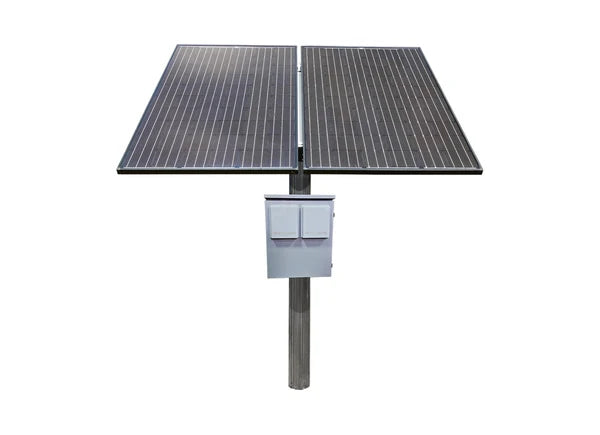

• Two or four solar panels with frame
• Disconnect box
• Fhoton™ drive solar inverter
• All required wiring components

Required for Installation

The following components are not included and must be supplied separately:

• Vertical pole for the solar panels and frame
• Concrete footing for the pole
• Two anchor ropes with weights or tethers for the aerator

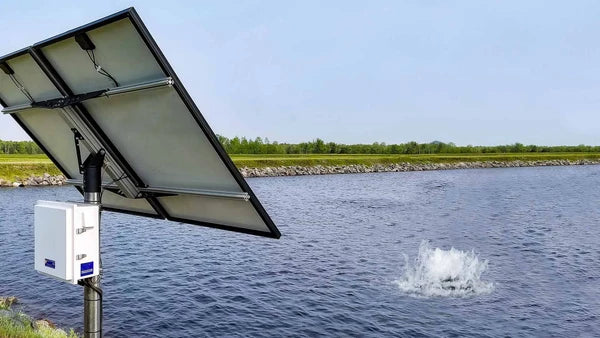

Solar-Powered Performance

The Solar Boilermaker's photovoltaic panels continuously adjust the aerator's operating speed according to available sunlight. This allows the system to gradually increase water flow as sunlight strengthens, providing efficient daytime aeration without the need for battery storage.

Winter Operation

The Solar Boilermaker can also function as a pond de-icer during winter. No costly or time-consuming winterization is required. Simply turn off the power supply and leave the aerator in place during freezing conditions. Once the water thaws in spring, restore power and the unit is ready to operate.

Scott Aerator Solar Boilermaker Aerator

• SOLAR BOILERMAKER AERATOR, 1/2 HP 48 V, 70 FT 12-3
• SOLAR BOILERMAKER AERATOR, 3/4 HP 100 V, 70 FT 12-3
