Scott Aerator Solar-Powered DA-20 Display Aerator | Solar Pond Fountain & Aeration System

Specifications

• Models: 2-Panel Solar DA-20 Display Aerator, 4-Panel Solar DA-20 Display Aerator
• Solar Panels: 2 or 4 × 340-Watt, 60-Cell High-Efficiency Monocrystalline Panels; Each Measures 41" × 69"
• Motor: ½ HP, 48 V for 2-Panel; ¾ HP, 100 V for 4-Panel; Three-Phase, 60 Hz
• Current Draw: 10.3 Amps for 2-Panel; 8.6 Amps for 4-Panel
• Power: 0.37 kW for 2-Panel; 0.55 kW for 4-Panel
• Flow Rate: 200 GPM for 2-Panel; 300 GPM for 4-Panel
• Spray Pattern: 4' H × 15' W for 2-Panel; 5' H × 20' W for 4-Panel
• Power Cord: 70' 12-Gauge Submersible Cord; Longer Lengths Available
• Warranty: 5-Year Motor Warranty
• Minimum Water Depth: 36" for 2-Panel; 44" for 4-Panel
• Anchoring: Two 30-lb. Weights or Concrete Blocks Required; Not Included
• Operation: No Maintenance Required

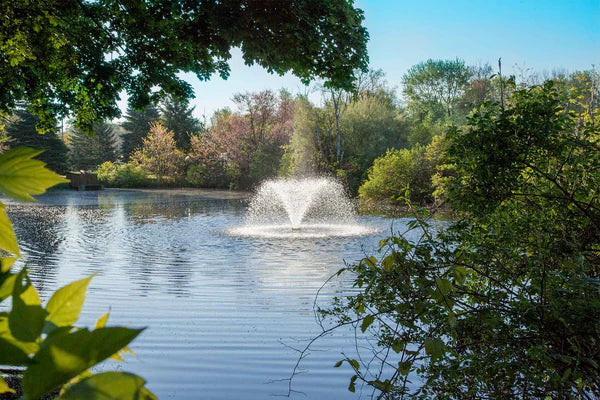

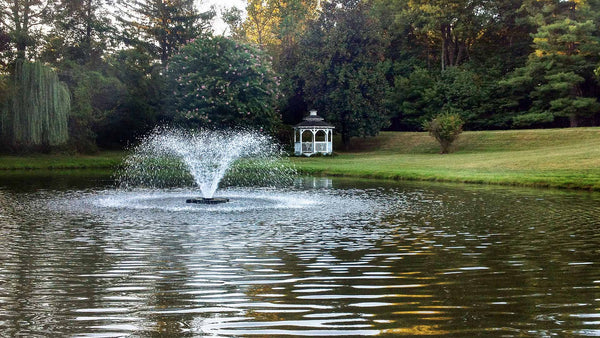

The Scott Aerator Solar-Powered DA-20 Display Aerator combines clean, eco-friendly solar aeration with the visual appeal of a beautiful fountain, making it an ideal solution for remote ponds where running electrical power is difficult or costly. Powered directly by the sun, this system provides effective daytime aeration while creating an attractive cascading, trumpet-shaped water display.

Available with two or four solar panels, the Solar DA-20 moves up to 200 gallons per minute with the two-panel model and up to 300 gallons per minute with the four-panel model. Its adjustable spray pattern measures approximately 5 feet tall and 9–20 feet wide, providing both functional water circulation and an attractive focal point.

Key Features & Benefits

• Solar-Powered Aeration & Display – Combines environmentally friendly solar power with the beauty and functionality of a fountain.
• Two Flow Options – Moves up to 200 GPM with the two-panel model or up to 300 GPM with the four-panel model.
• Adjustable Trumpet-Shaped Spray – Creates a cascading display approximately 5 feet tall and 9–20 feet wide.
• Variable-Speed Operation – Automatically adjusts water flow according to available sunlight.
• Effective Surface Circulation – Helps move algae and floating debris from the pond surface.
• Improves Oxygen Levels – Adds oxygen to the water to support fish and healthier pond conditions.
• Helps Reduce Muck – Increased oxygen supports the breakdown of decaying organic matter at the pond bottom.
• Battery-Free Solar Operation – Operates directly from solar power without the costly, high-maintenance batteries used by many solar aerators.
• Daytime Operation – Powers up with sunlight, gradually increases water flow as sunlight changes, and shuts down after dark.
• Stainless Steel, Oil-Free Motor – Durable submersible motor requires no oil changes and minimal maintenance.
• Winter-Ready Construction – Engineered to withstand subzero conditions without damage.
• Freshwater & Saltwater Compatible – Designed for use in both fresh and salt water.
• Made in the USA – Proudly manufactured by Scott Aerator Company in Holland, Michigan.
• 5-Year Motor Warranty – Backed by an unconditional 5-year motor warranty.

What's Included

• DA-20 Display Aerator

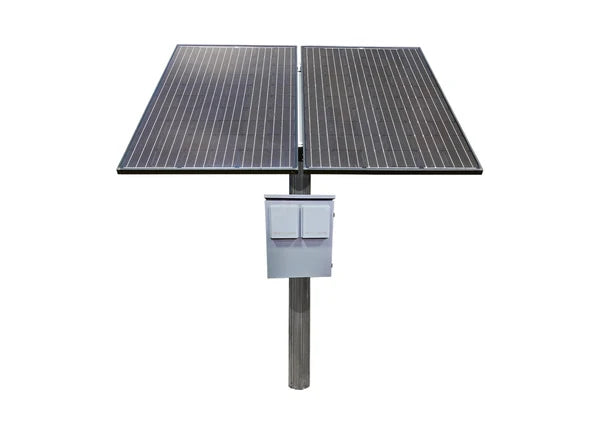

• Two or four solar panels with frame
• Disconnect box
• Fhoton™ drive solar inverter
• All required wiring components

Required for Installation

The following items must be supplied separately:

• Vertical pole for the solar panels and frame
• Concrete footing for the pole
• Two anchor ropes with weights or tethers for the aerator

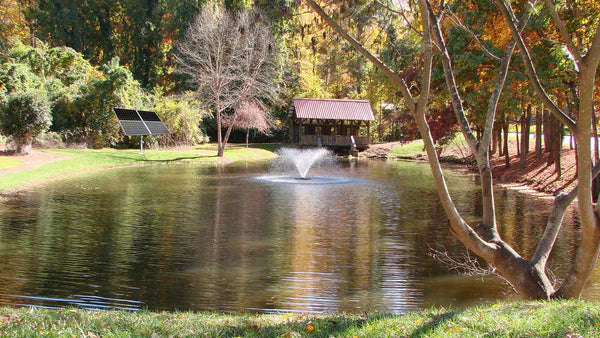

Solar-Powered Performance

The Solar DA-20 uses photovoltaic solar panels to provide variable-speed daytime operation. As sunlight changes throughout the day, the system gradually adjusts water flow to maximize available solar energy. After sunset, the unit automatically shuts down, eliminating the need for battery storage.

Winter Operation

The Solar DA-20 is designed to remain in the water during freezing conditions without complicated or costly winterization procedures. Simply turn off the power supply and leave the aerator in place until spring. Once the water thaws, restore power and the unit is ready to operate.

Scott Aerator Solar DA-20 Pond Aerator

• SOLAR DA-20 DISPLAY AERATOR, 1/2 HP 48 V, 70 FT 12-3
• SOLAR DA-20 DISPLAY AERATOR, 3/4 HP 100 V, 70 FT 12-3
