Solar Sub-Surface Aeration System – High-Volume Solar Pond Aeration

Specifications

• Solar Module: Standard: 60-cell, 300-watt, high-efficiency solar module (39" x 65"); XL: 120-cell, 300-watt, high-efficiency solar module (2 @ 39" x 65"), both with fully adjustable top-of-pole racking
• Circuit Breakers: Individual rocker-style circuit breakers
• Compressors: Standard: One high-efficiency, brushless, rocking-piston compressor; XL: Two high-efficiency, brushless, rocking-piston compressors
• Air Flow & Pressure: Standard: 2.5 SCFM / 30'+ / 25 psi; XL: 5 SCFM / 30'+ / 25 psi
• Pressure Relief Valve: Brass automatic pressure relief valve
• Pressure Gauge: Liquid-filled, stainless steel pressure gauge
• Ball Valves: Standard: Two full-flow brass ball valves; XL: Four full-flow brass ball valves
• Noise Level: Standard: <65 dB @ 6'; XL: <67 dB @ 6'
• Airline: Standard: One 3/8-inch x 300-foot airline; XL: Two 3/8-inch x 300-foot airlines

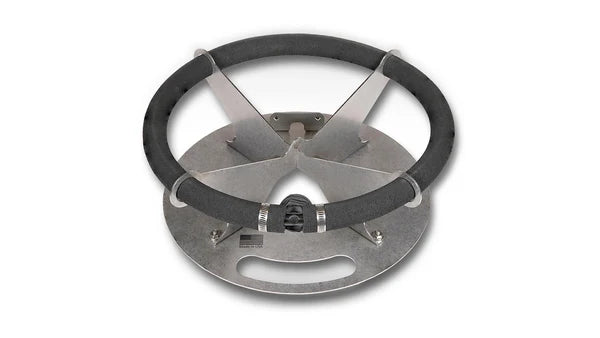

• Diffusers: Standard: Two self-weighted diffusers; XL: Four self-weighted diffusers
• Ventilation: Standard: 78 CFM automatic active ventilation; XL: 110 CFM automatic active ventilation
• Warranty: Two-year warranty on all components

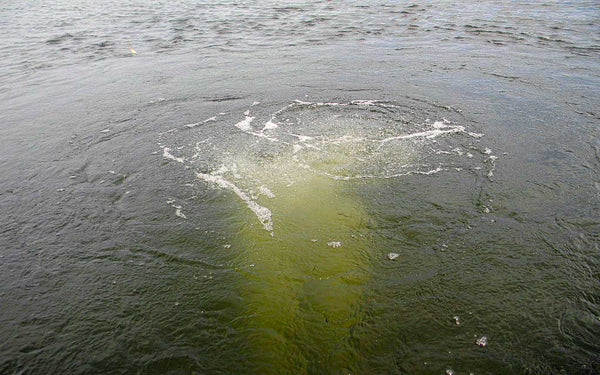

Our Solar Sub-Surface Aeration Systems provide the benefits of traditional pond aeration without the need for costly batteries, AC wiring, or ongoing grid power. Designed for low-maintenance, high-volume aeration, these solar-powered systems can deliver reliable aeration even during cloudy conditions.

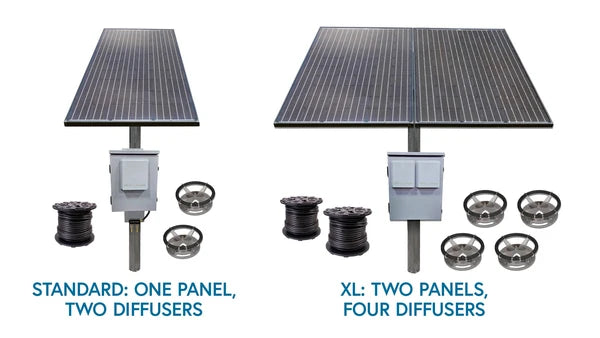

Choose between two system options: the two-diffuser system with one solar panel, ideal for ponds up to 2.5 acres, or the four-diffuser XL system with two solar panels, ideal for ponds up to 5 acres. Each system is built with high-quality, American-made components and includes a two-year warranty.

The brushless compressor is designed to provide more than three times the service life of brushed permanent-magnet motors. A vertical galvanized mounting pole measuring 3 inches (3½ inches OD) in diameter and approximately 10 feet long is required for installation and is not included.

Key Features & Benefits

• Solar-Powered Aeration – Provides pond aeration without AC wiring or ongoing grid power.
• Two System Options – Choose a two-diffuser system for ponds up to 2.5 acres or a four-diffuser XL system for ponds up to 5 acres.
• High-Volume Aeration – Designed for increased daily run time and efficient pond circulation.
• Brushless Compressor – Offers more than three times the service life of brushed permanent-magnet motors.
• Rated for 30+ Feet Deep – Suitable for deeper pond and lake aeration applications.
• Plug-and-Play Wiring – Designed for quick and easy installation.
• Low-Frequency Sound Reduction – Integrated sound-reduction system operates at less than 65 dB at six feet.
• Durable Construction – Features an all-welded steel base with a powder-coated finish.
• Fiberglass-Reinforced Enclosure – Provides a rust-free enclosure for the aeration system.
• Pole-Mount Enclosure – Designed for vertical pole mounting.
• Reusable Air Intake Filter – Primary air intake filter is washable and reusable.
• Electronic Overcurrent Protection – Helps protect the system during operation.
• High-Flow Cooling Fan – Ball-bearing cooling fan supports system operation.
• Low-Temperature Pressure Gauges – Liquid-filled gauges provide pressure monitoring.
• Stainless Steel Hardware – Locking hasps and hardware are designed not to rust.
• Factory Tested – Every system is 100% factory-tested for quality assurance.
• Two-Year Warranty – Backed by a two-year warranty.

Solar Sub-Surface Aeration Applications

Solar sub-surface aeration can be used for a wide range of pond, lake, and water management applications, including:

• De-icing
• Golf courses
• Fish farms
• Frac pit normalizing
• Habitat management
• Livestock watering
• Marinas
• Ponds and lakes
• Parks
• Stormwater management
• Weed and algae control

What Sets This System Apart?

• Digital Motor Controller – Designed to extend system life by up to 300%.
• Industry-Best Run Hours – Provides dramatically increased daily operating time.
• Low-Frequency Sound Reduction – Less than 65 dB at six feet.
• Minimal Pressure Loss – Designed for efficient air delivery.
• All-Welded Steel Base – Powder-coated for durability.
• 100% Factory Tested – Each system is tested to ensure quality and performance.

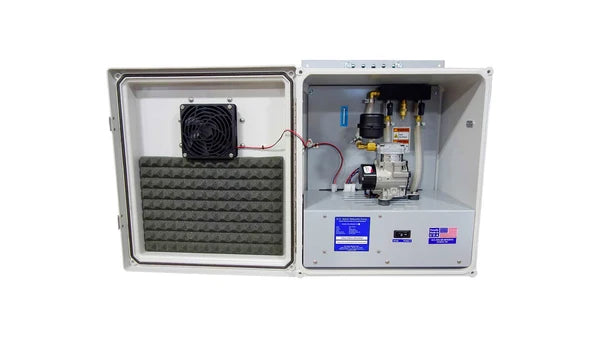

The system features MPPT solar charge control with Bluetooth, a digital time clock, and automatic ventilation to help manage charging, daily run times, and system protection. The enclosure features welded construction, locking hasps, a durable powder-coated finish, stainless steel hardware, and screened vents.

The Backup Battery Module also includes an easy-to-clean magnetic air intake and a cleanly assembled, factory-tested control panel designed for long-term operation.

Important: The Backup Battery Module requires two solar panels to generate sufficient power to recharge the batteries. When adding the Backup Battery Module to the standard two-diffuser system, the system will be upgraded from one solar panel to two solar panels.

Mounting Requirement: A vertical galvanized pole measuring 3 inches (3½ inches OD) in diameter and approximately 10 feet long is required for mounting and is not included.
