Triad Fountain – Three Interchangeable Spray Patterns in One

Specifications

• Models: The Triad Fountain 2 HP, The Triad Fountain 3 HP
• Motor: 2 HP & 3 HP, 230 V Oil-Free Motors
• Electrical: 60 Hz, Single-Phase, 3,450 RPM; 1.5 kW for 2 HP / 2.2 kW for 3 HP
• Current Draw: 10 Amps at 230 V for 2 HP; 13.3 Amps at 230 V for 3 HP
• Flow Rate: 130–135 GPM for 2 HP; 170–175 GPM for 3 HP, depending on nozzle

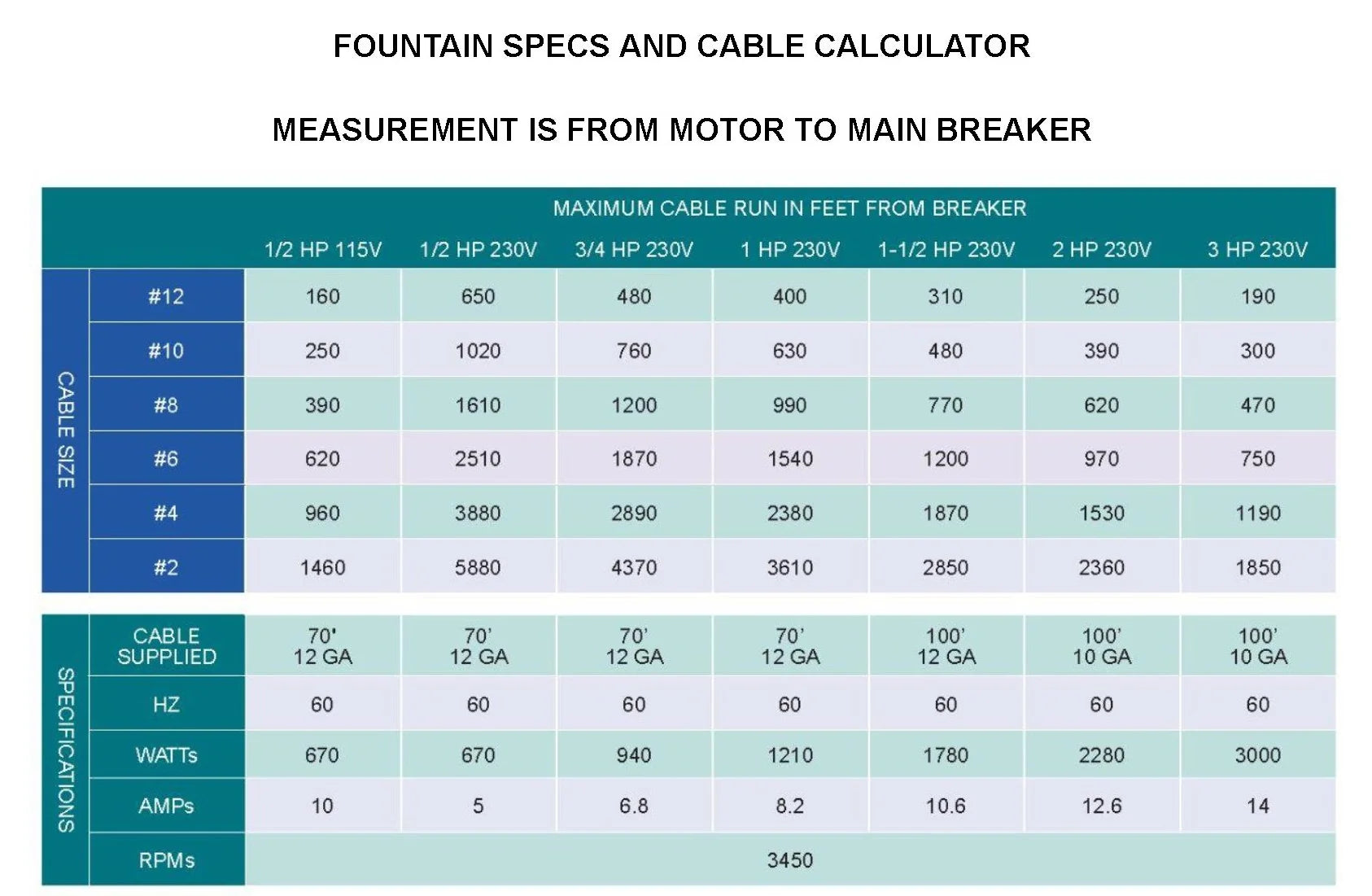

• Power Cord: 100' 10-Gauge Submersible Cord; Longer Lengths Available
• Warranty: 5-Year Motor Warranty
• Minimum Water Depth: 56" for 2 HP; 60" for 3 HP
• Nozzles: Three Brass Nozzles Included — Rosewood, Gusher, and Skyward
• Features: Saltwater Approved; Optional Light Kits Available; 24-Hour-Per-Day Operation; No Maintenance Required
• Anchoring: Two 45-lb. Weights for 2 HP; Two 55-lb. Weights for 3 HP; Two Nylon Ropes Required; Not Included
• Safety: GFCI Required; Disconnect Power When Swimmers Are Present
• Compliance: ARL-Tested and Compliant with UL Standards and the National Electric Code When Installed as a Complete Package

Transform your pond or lake with the versatile Triad Fountain, a multi-pattern water feature designed to give you three distinct fountain displays in one unit. With three interchangeable brass nozzles included, you can easily change the appearance of your fountain without tools, giving you the flexibility to create the look that best suits your waterscape.

Choose from the elegant Rosewood, powerful Gusher, or expansive Skyward spray pattern. Each nozzle creates a distinctive display while the fountain promotes water circulation and oxygenation, helping support a healthier aquatic environment.

The Triad Fountain offers three interchangeable spray options:

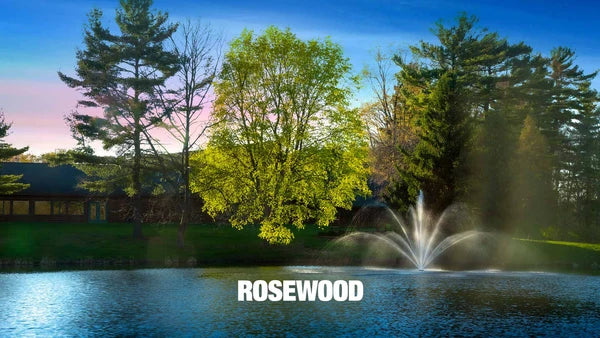

• Rosewood – Creates a multi-tiered classic spray pattern.
  • 2 HP: Up to 35 feet high × 45 feet wide
  • 3 HP: Up to 45 feet high × 55 feet wide

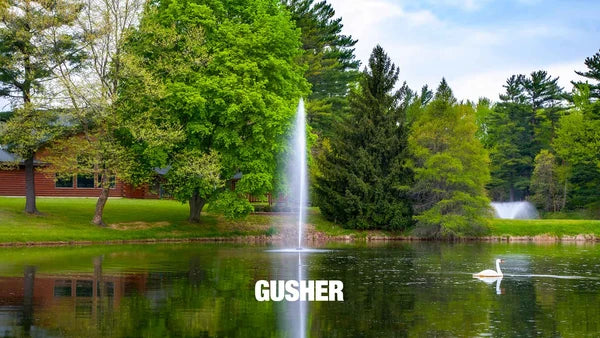

• Gusher – Produces a bold, voluminous vertical column.
  • 2 HP: Up to 40 feet high
  • 3 HP: Up to 50 feet high

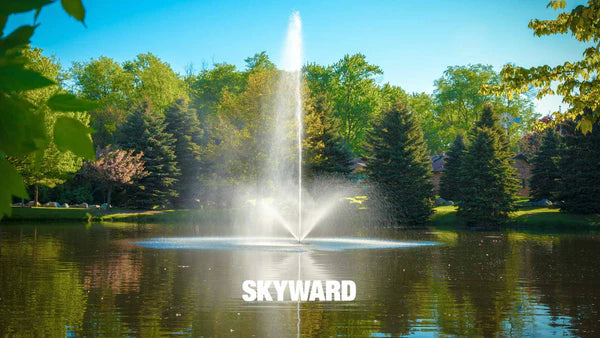

• Skyward – Creates a tall vertical column with a soft, wide spray pattern.
  • 2 HP: Up to 45 feet high × 60 feet wide
  • 3 HP: Up to 50 feet high × 70 feet wide

Key Features & Benefits

• Three Interchangeable Spray Patterns – Includes Rosewood, Gusher, and Skyward nozzles for three distinct water displays in one fountain.
• Tool-Free Nozzle Changes – Easily switch between spray patterns without requiring tools.
• Durable Brass Nozzles – Precision-crafted brass nozzles provide reliable performance and long-lasting durability.
• Powerful Water Displays – Choose from vertical, multi-tiered, or wide spray patterns depending on the nozzle selected.
• Promotes Water Circulation – Helps circulate water throughout the pond or lake.
• Supports Oxygenation – Increased water movement and oxygen circulation help support a healthier aquatic environment.
• Winter-Ready Design – Built to withstand subzero conditions without complicated or costly winterizing procedures.
• Stainless-Steel, Oil-Free Motor – Durable submersible motor requires no oil changes.
• Low-Maintenance Operation – No oil changes, maintenance, or control box required.
• Fresh & Salt Water Compatible – Designed for use in both fresh and salt water.
• Made in the USA – Manufactured in Holland, Michigan.
• Unconditional 5-Year Motor Warranty – Provides added confidence in long-term performance.

Scott Aerator Triad Fountain For Large Commercial Ponds

• TRIAD FOUNTAIN, 2 HP 230 V, 100 FT 10-3
• TRIAD FOUNTAIN, 2 HP 230 V, 150 FT 10-3
• TRIAD FOUNTAIN, 2 HP 230 V, 200 FT 10-3
• TRIAD FOUNTAIN, 2 HP 230 V, 250 FT 10-3
• TRIAD FOUNTAIN, 3 HP 230 V, 100 FT 10-3
• TRIAD FOUNTAIN, 3 HP 230 V, 150 FT 10-3
• TRIAD FOUNTAIN, 3 HP 230 V, 200 FT 10-3
• TRIAD FOUNTAIN, 3 HP 230 V, 250 FT 10-3
