ProLake High Efficiency Surface Aerator 2400AF 1/2 HP 4 Solar Panels with Grid Blender Option

by ProLake
$9,442.00

Notify me when back in stock

Kasco High Efficiency Surface Aerator 2400AF 1/2 HP 4 Solar Panels with Grid Blender Option

Capitalize on the unbeatable strength of Kasco products driven by the sun. This technology is easy to use and more powerful than anything on the market and is designed for use in applications spanning from farm ponds to harsh industrial environments. These patented controllers come solar + grid blender options. They are an all-in-one inverter and Variable Frequency Drive with maximum power point tracking designed to utilize the most solar power available.

Solar only systems use solar energy to maximize operation during daylight hours. In partial sunlight (morning and afternoon), the system will run at reduced speed extending the daily run time.

These packages includes
  • PicoCell™ 3500 Control Panel.
  • Blender Controller Option
  • These systems utilize solar power during the day and grid power at night to provide 24/7 performance. These packages include the PicoBlender™ 2500 Control Panel.
  • (morning and afternoon), the system will run at reduced speed extending the daily run time.



    Product Features
  • Operate standard Kasco 50hz / 60hz, 1/2-2HP units (2HP units must be 3 phase)
  • Soft start function to maximize runtime and extended available solar hours
  • Status LEDs to indicate operating status and fault conditions
  • Easily add additional solar panels to increase performance and extend daily run time from solar
  • GFCI motor protection
  • Comes with 4 solar panels
  • Complete Package Includes
  • PicoPanel Controller - Grid Blended (PicoBlender) or Direct Drive (PicoCell)
  • Solar Panel Racking - Includes poles and crossbeams
  • Solar Panels
  • Solar Panel Jumper Cables
  • Kasco Aerator/Fountain/Circulator
  • All Mounting Hardware
  • Direct Drive to operate when sun is out
  • Blend Option will use sun & grid power
  • Variable Frequency Drive provides soft start function to maximize daily run time
  • Sizing based on geographic location, run time required, and Kasco product being operated
  • Output of 120 or 240V single phase, or 230V 3 phase
  • Will run up to a 1HP on single phase and 2HP on 3-phase
  • PicoCell Panel Details
  • MPPT Operating Range of 100-380V
  • Max PV Panel open circuit voltage of 400V
  • Min operating PV voltage of 100V
  • Maximum PV Panel current 9 amps
  • Single phase max AC motor power of 13 amps
  • 3 phase max AC motor power of 10.5 amps
  • NEMA4/IP66 aluminum enclosure
  • Operating Temp of -40°F to 122°F
  • FCI motor protection is included
  • Ground Mount Racking
  • 5-40O tilt angles
  • Slide in connections for easy installation
  • Galvanized steel construction
  • Concrete foundation required
  • 125mph wind rating
  • Up to 80 PSF snow load
  • PicoBlender Panel Details
  • Blends solar PV & electric grid power
  • Maintains full power 24/7
  • AC input voltage range of 120-240Vac single phase
  • AC max input current 12 amp
  • Single phase max AC motor power of 10 amps
  • Three phase max AC motor power of 8 amps
  • Solar PV operating range of 100-400Vdc
  • Maximum PV Panel current 9 amps
  • NEMA3R/IP65 aluminum enclosure
  • Operating Temp of -40°F to 122°F
  • GFCI motor protection is included
  • PV Solar Panels
  • Minimum 325+watt polycrystalline photovoltaic panels
  • Dimensions: 77” x 39” x 1.6”
  • Operating Temperature Range: -40°F – 185°F
  • Solar Only Option

    Operate a unit at variable speed to maximize the energy from the sun. In partial sun light (morning and afternoon) the unit will run at reduced speed, as to not shut off completely, extending the daily run time.

    Blender Controller Option

    Combine the solar only controller capabilities with grid power to save energy costs and allow for full speed, 24/7 operation.

    Kasco 1/2 HP 2400AF Floating Surface Aerator

    The Kasco 2400 AF Pond Surface Aerators move a large amount of water for aeration and circulation, with minimal energy consumption to improve oxygen levels in ponds up to 1/2 surface acre. Kasco 1/2 HP pond aerator is designed to keep a natural appearance in the water and have proven to be an excellent choice for both continuous duty pond aeration and supplemental aeration for unique applications. Unlike fountains, this surface 1/2 aerator doesn't produce a tall spray pattern.

    Each 1/2HP 115V ETL listed motor operates in just 15 inches of water and floats on the surface of the water and connects to a single power cord (length range from 50' to 200') to reach the shoreline. Installation and maintenance can be performed by a single person using the (2) 50' included mooring lines. Kasco offers an optional bottom screen with 84 vertical screening bars to keep debris out and allow for maximum water flow into the motor. Kasco also offers an optional C-25 Control Panel with a 24-hour mechanical timer and Class A GFI in 115V (sold separately).

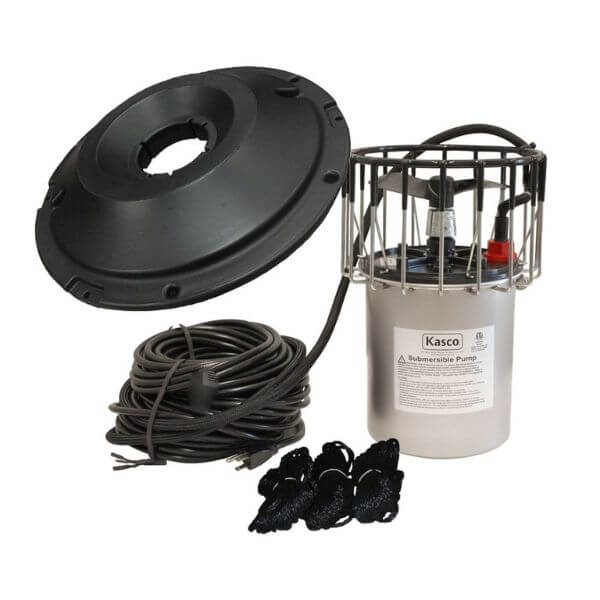

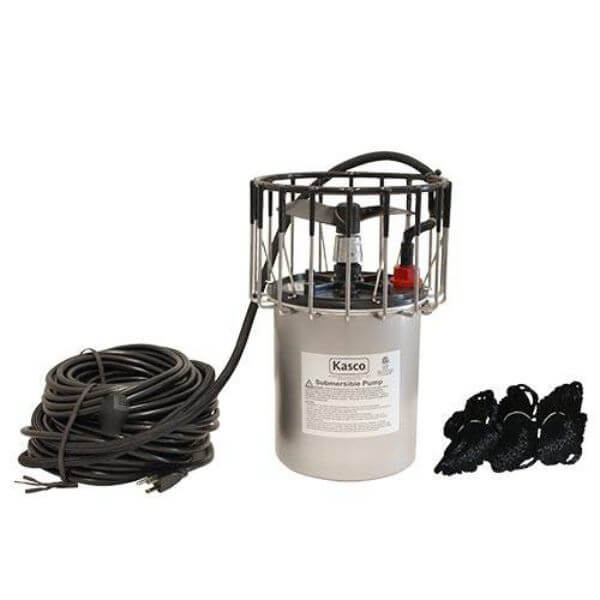

    Aeration Kit Includes: 1/2 HP surface aerators come with float and mounting hardware, 120-volt configuration with 50’ electric power cord, and 3 mooring lines. Optional lighting packages and control panels are available.

    Flex Sleeve Cord Protector: Kasco Surface Aerator Power cords can be protected with a flex sleeve cord protector. A flex sleeve cord protector is a durable, flexible sleeve that can be used to protect electrical cords from damage. It is made of a high-quality material that is resistant to water, dirt, and UV rays. The flex sleeve cord protector is also easy to install and remove.

    Energy Efficient: These aerators are great for aeration, display and are low at overall energy consumption as well. These high-flow units are efficient, easy to install and operate, and ideal for many applications. These units can function in as little as 15 inches of water.

    High Quality Materials: All our aerators come with the same high-quality parts. We stay true to our promised quality, with a stainless-steel build and submersible motor, these aerators are environmentally safe and built to last. These surface aerators have a Limited 2-year Warranty and are also ETL approved as per UL & CSA standards.

    Advanced Technology: Kasco Aeration Systems provide high-performance, made with professional quality components combined with our advanced filtration and cooling technology to ensure long system life.
