Product Overview

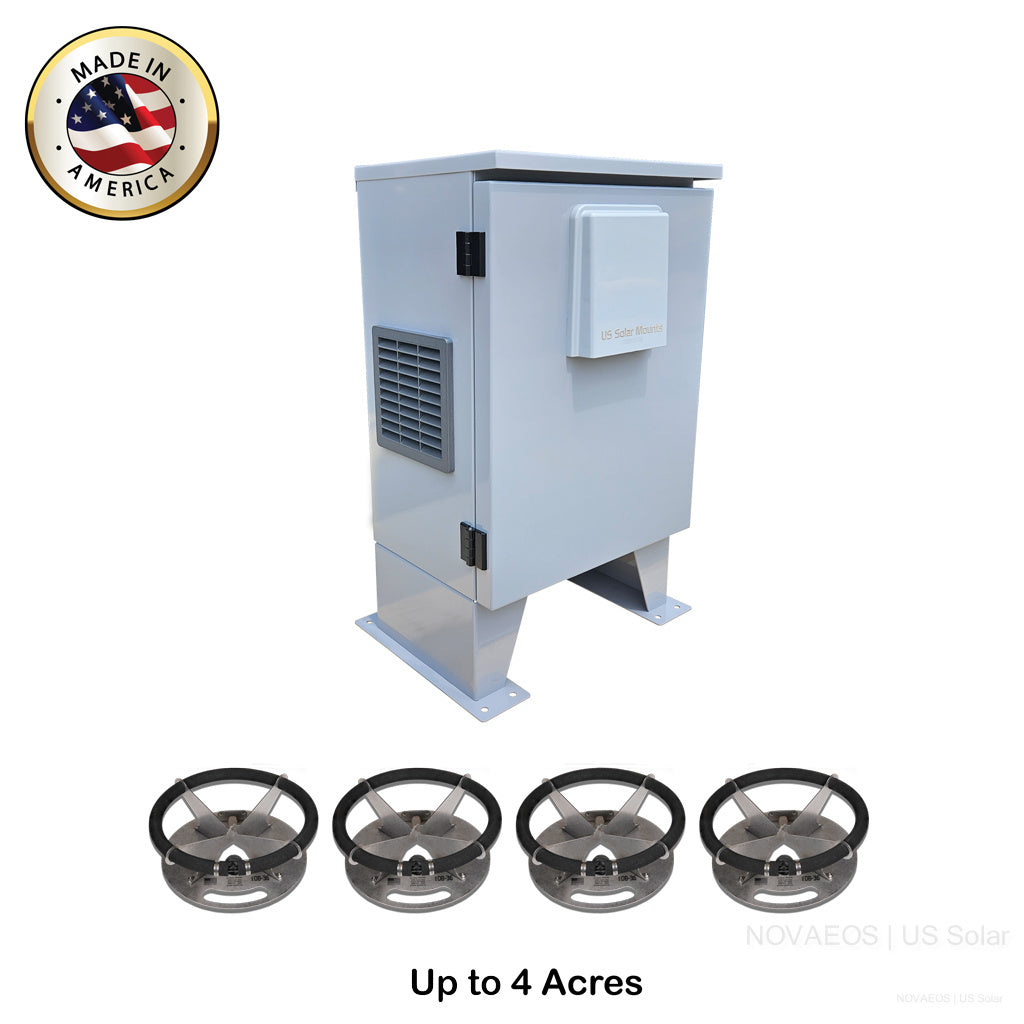

The NOVAEOS AC-LA4 is a high-output 120-volt electric pond and lake aerator engineered for ponds up to 4 acres. It combines a 1/2 HP USA-made rocking piston compressor, four DB-36 stainless steel diffusers, and a purpose-built AC-Series enclosure designed for quiet, serviceable, long-term outdoor operation.
Where utility power is available, continuous AC-powered aeration provides dependable oxygen transfer day and night at a low operating cost. The AC-LA4 delivers greater air output and broader diffuser distribution than the smaller AC-Series models, making it well suited to larger ponds that benefit from four separate diffuser locations.
The NOVAEOS AC-Series was engineered around airflow, temperature management, sound control, filter access, compressor access, mounting flexibility, pressure monitoring, individual diffuser balancing, and optional startup control. The result is a complete professional aeration system rather than a generic compressor installed in a cabinet.
Key Benefits
• Continuous 120-Volt Aeration: Provides dependable 24-hour operation wherever suitable grid power is available.
• Four-Diffuser Distribution: Four DB-36 diffusers improve circulation, oxygen transfer, and bottom-water movement across larger ponds.
• High-Output Compressor Platform: The 1/2 HP rocking piston compressor provides up to 5.2 SCFM for higher air-demand applications.
• Purpose-Built Outdoor Cabinet: Laser-cut, formed, welded, and powder-coated enclosure designed specifically for aeration equipment.
• Flexible Installation: Standard pole, post, or wall mounting with an optional ground-mount base kit.
• Advanced Control Options: Available digital time clock, automatic Slow Start control, and high-temperature protection.
Purpose-Built Enclosure
The AC-Series cabinet provides protected ventilation, lockable access, quiet operation, and convenient service access to the compressor, filters, pressure gauge, controls, manifold, and air outlets. Dual washable enclosure filters, a screened exhaust outlet, active ventilation, two dedicated compressor cooling fans, and rubber isolation mounts help support reliable operation and reduced sound transmission.
Designed for Serviceability and Air Balancing
The AC-LA4 includes dual easy-access washable enclosure filters, dual compressor intake filter/silencers with replaceable cartridges, a built-in liquid-filled pressure gauge, and four full-flow balancing valves. Each diffuser run can be adjusted independently to compensate for differences in airline length, water depth, and backpressure.
The AC-LA4 Kit Includes
Airline is sold separately. Select sufficient self-weighted airline for all four diffuser runs based on cabinet location, pond depth, and planned diffuser placement.
Technical Specifications
System Capacity
Compressor and Air Output
Air Distribution
Enclosure and Mounting
Ventilation and Protection
Electrical Installation Requirements
The AC-LA4 must be supplied from a properly installed 120-volt, 15- or 20-amp GFCI-protected circuit. Verify operating voltage at the compressor while the unit is running under load. Undersized conductors or excessive voltage drop can reduce performance and shorten equipment life.
Warranty and Support
Warranty coverage is provided under the current U.S. Solar Mounts Corp Limited Product Warranty and is subject to applicable registration requirements, exclusions, limitations, and claim procedures. Use the current approved warranty document supplied by U.S. Solar Mounts for complete terms.
Application assistance and U.S.-based technical support are available for system selection, installation planning, airline sizing, diffuser placement, and voltage-drop review.
