SD2 Solar Direct Aerator - Single Panel

The SD2 Solar Direct Aerator is a complete, off-grid aeration system designed for ponds up to 2 acres. Powered entirely by sunlight, it delivers high-volume aeration without batteries, utility power, trenching, or an electrician.

Product Overview

Built with high-quality American-made components, the SD2 combines a brushless DC rocking-piston compressor, a proprietary digital motor controller, two stainless-steel DB36 diffusers, and 300 feet of self-weighted airline. The system begins operating in very low light and automatically increases output as available sunlight increases. Its rugged, powder-coated steel enclosure is designed for long service life and straightforward pole-mounted installation.

Key Features

• Designed for ponds up to 2 acres
• 2.8 CFM at 10 PSI
• Brushless DC rocking-piston compressor
• Operates with as little as approximately 6% sunlight
• Rated operating depth of 30 feet or more
• Quiet operation - less than 65 dB at 6 feet
• Proprietary high-efficiency digital motor controller
• All-welded, powder-coated steel enclosure with locking hardware
• High-flow enclosure cooling and ventilation
• Replaceable compressor intake filter and silencer
• Adjustable pole-top solar-module mount
• No batteries, AC wiring, trenching, or electrician required

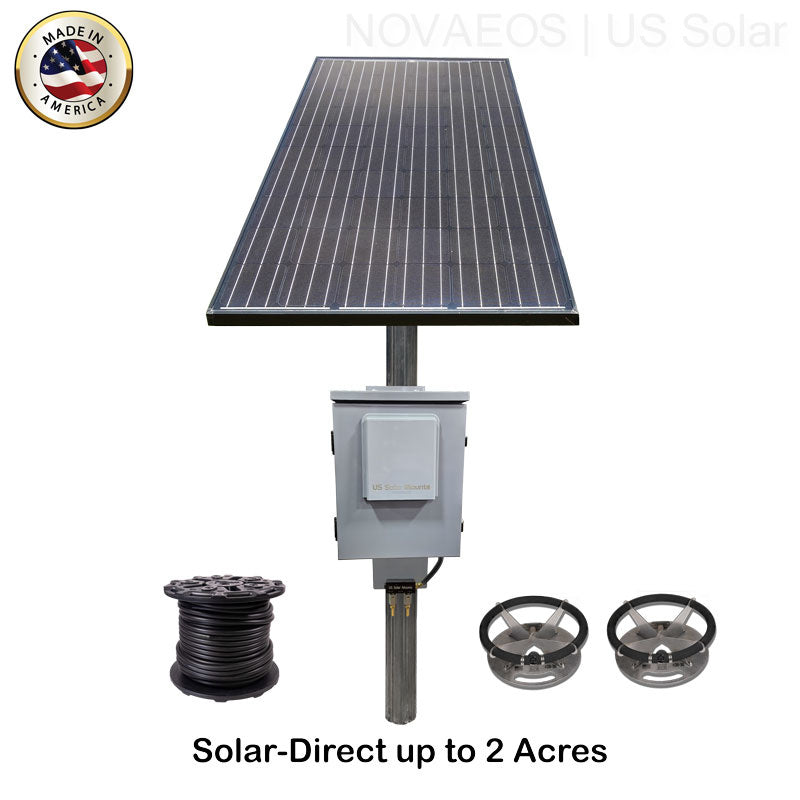

What Is Included

• Complete compressor and control system
• One 345-watt-or-greater, American-made 60-cell solar module
• Adjustable pole-top solar-module mount
• Pole-mount compressor enclosure and mounting hardware
• Two DB36 stainless-steel fine-bubble diffusers
• 300 feet of 3/8-inch self-weighted airline
• PV cables
• Installation instructions
• Technical support and factory warranty

Product Specifications

• Recommended Pond Size: Up to 2 acres
• Air Output: 2.8 CFM at 10 PSI
• Compressor: Brushless DC rocking-piston compressor
• Solar Module: One 345-watt-or-greater, American-made 60-cell module
• Low-Light Operation: Begins operating with approximately 6% sunlight
• Rated Depth: 30 feet or more
• Sound Level: Less than 65 dB at 6 feet
• Diffusers: Two DB36 stainless-steel fine-bubble diffusers
• Airline: 300 feet of 3/8-inch self-weighted airline included
• Enclosure: All-welded, powder-coated steel, pole-mounted, locking
• Mounting Pole: Customer-supplied 3-inch nominal Schedule 40 or Schedule 80 steel pole, 3.5-inch outside diameter
• Country of Origin: USA

Typical Applications

• Remote ponds without nearby electrical service
• Farm, ranch, residential, and recreational ponds
• Ponds requiring two diffuser locations for improved circulation
• Sites where trenching and utility installation are impractical
• Properties seeking low-maintenance, off-grid aeration

Should You Add a Second Solar Panel?

The single-panel system provides approximately twice the power required for full compressor output under moderate light. A second panel does not increase compressor output on a clear, sunny day and does not increase the recommended pond coverage. It can, however, substantially extend daily runtime and improve operation during dark overcast weather, rain, snow, or partial snow cover.

Installation Requirements

The customer supplies a 3-inch nominal Schedule 40 or Schedule 80 steel mounting pole with a 3.5-inch outside diameter. Plastic pipe or tubing must not be used as the mounting pole. Final diffuser placement and airline routing should be selected to promote effective circulation while accounting for pond depth, shape, and site conditions.

Warranty Summary

• 1-year warranty on the compressor and controls
• 5-year warranty on non-wearable system components
• 20-year warranty on the solar module or modules
• Warranty coverage is subject to the manufacturer's current written warranty terms, exclusions, and registration requirements.
